| Place of Origin: | China |
|---|---|
| Brand Name: | BOZHONG |
| Certification: | ISO / TUV / DNV |
| Model Number: | 300series，200series, 400series |
| Minimum Order Quantity: | negotiable |
| Price: | negotiable |
| Packaging Details: | seaworthy packing or as required |
| Delivery Time: | 3--10days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000TON/MONTH |

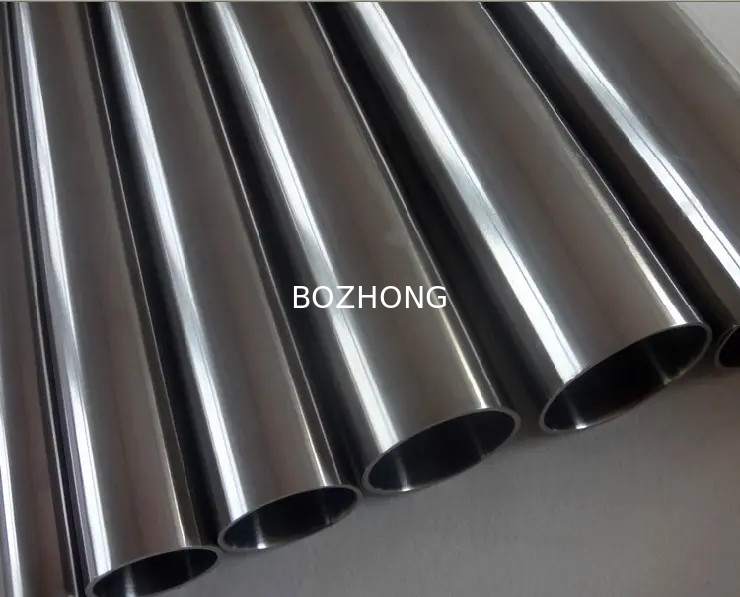

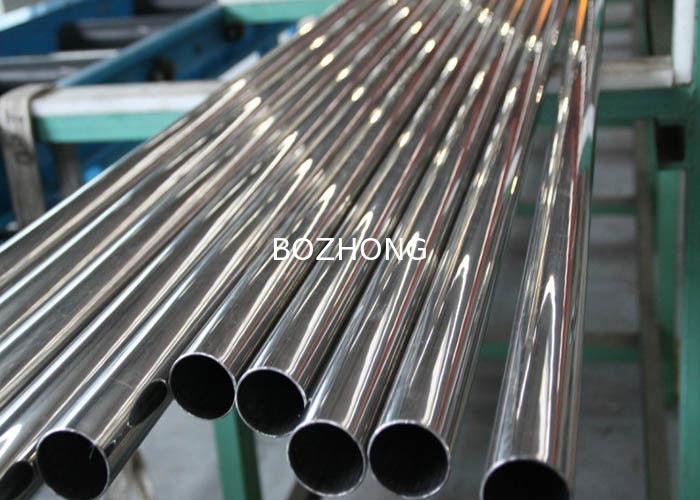

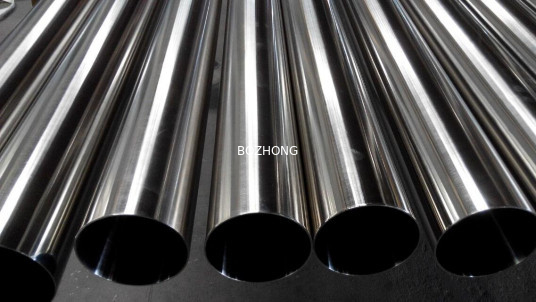

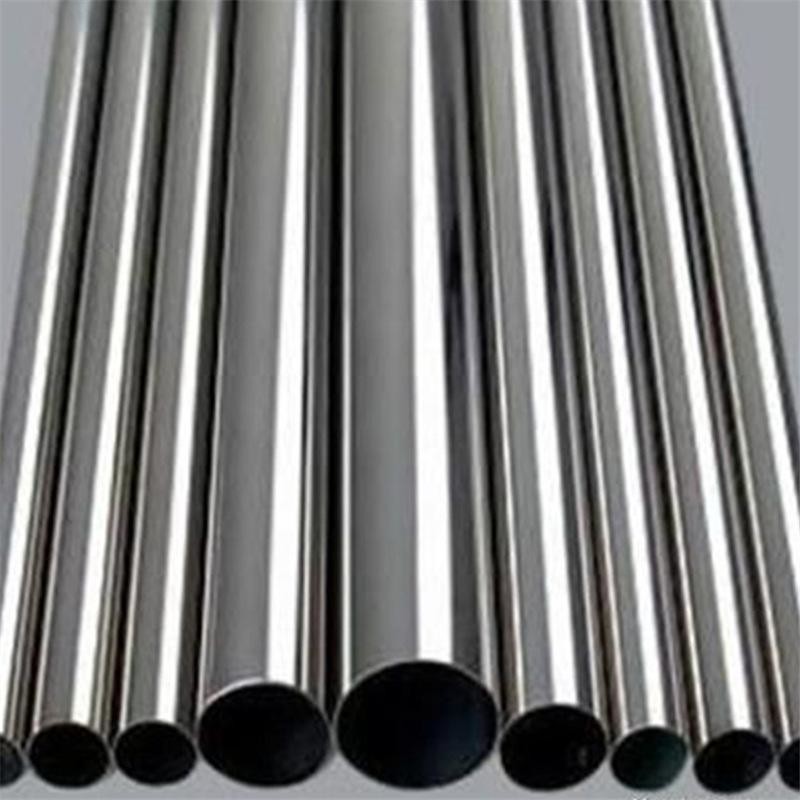

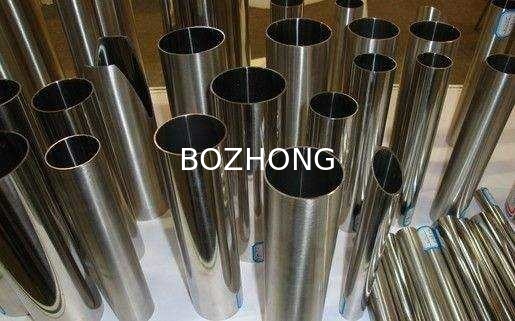

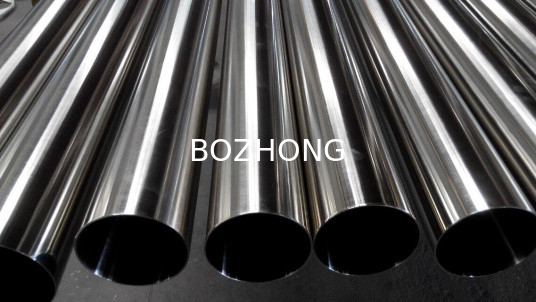

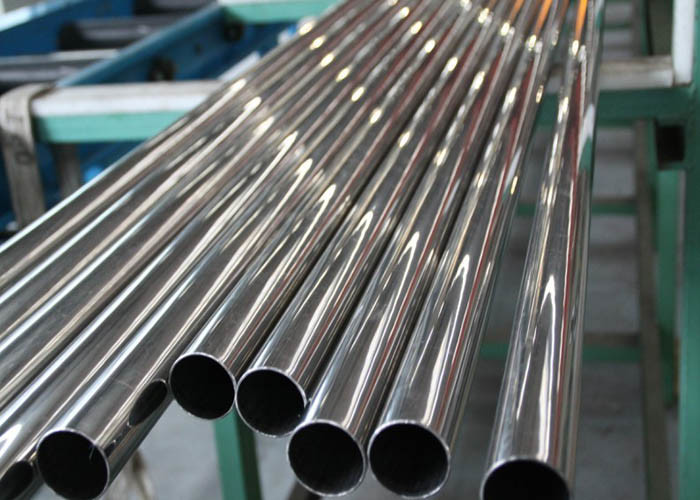

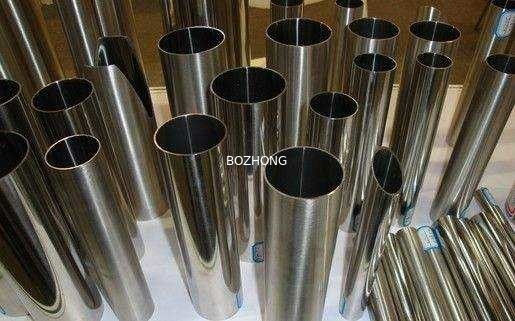

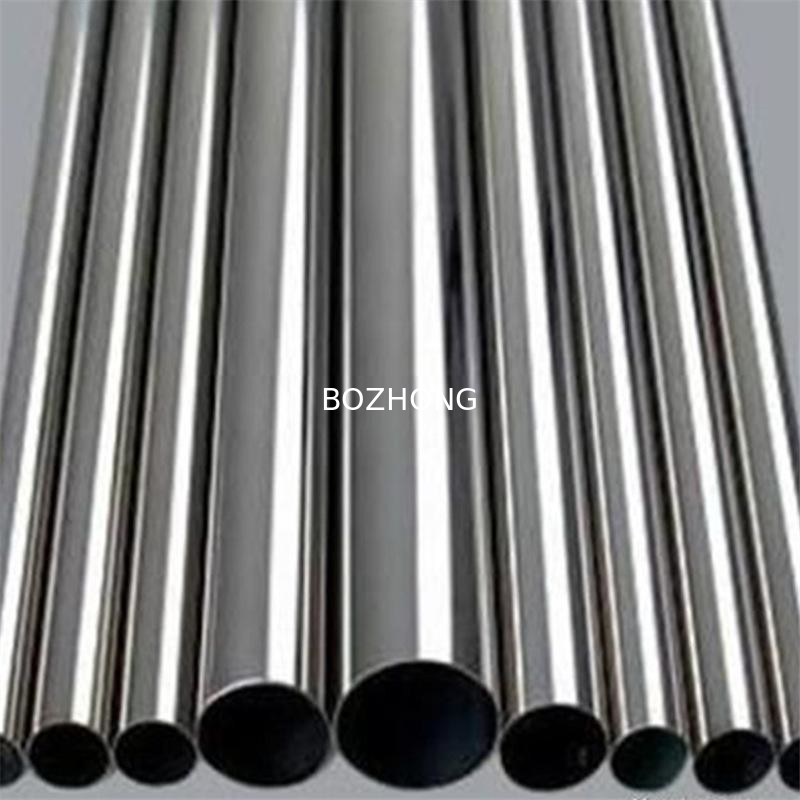

| Description: | Stainless Steel Pipe/Tube | GRADE: | 300series，200series, 400series |
|---|---|---|---|
| Wall Thickness: | 0.2-10.0mm | LENGTH: | 2000mm-8000mm Or As Customers' Request |
| WIDTH: | 600mm Min | SURFACE: | NO1,No.4,2B, BA, 6K, 8K, Hair Line With PVC |
| High Light: | stainless steel welded tube,stainless steel seamless pipe |
||
Materials:
300series:301,302,303,304,304L,309,309s,310,310S,316,316L,316Ti,317L,321,347,
200series:201,202,202cu,204;
400series:409,409L,410,420,430,431,440;
Others:2205,2507,2906,330,660,630,631,17-4ph,17-7 ph, S31803904L,ect.
Applications:
seawater environment, petrochemical, fertilizer, oil refining, oil and natural gas,light/food, paper pulp and making paper, energy and environmental protection industry.
Packing:
With plastic cap to protect both ends
Plastic bag wrapped outside pipe
Woven bag wrapped outside pipe
All our products are packed, stored, transported according to the international regulation.
The tubes are wrapped with anti-rust paper and steel rings to prevent damage. Identification labels are tagged according to standard specification or customer's instructions. Special packing is available as per customer's requirement.
Plus, ply wooden box are available for special protection. Other kinds of packing can be offered if request
| Type | Grade | Grade | Chemical Component % | ||||||||||
| C | Cr | Ni | Mn | P | S | Mo | Si | Cu | N | Other | |||
| Austenitic stainless steel | 201 | 1Cr17Mn6Ni5N | ≤0.15 | 16.00-18.00 | 3.50-5.50 | 5.50－7.50 | ≤0.060 | ≤0.030 | - | ≤1.00 | - | ≤0.25 | - |
| 201L | 03Cr17Mn6Ni5N | ≤0.030 | 16.00-18.00 | 3.50-5.50 | 5.50－7.50 | ≤0.060 | ≤0.030 | ≤1.00 | ≤0.25 | ||||
| 202 | 1Cr18Mn8Ni5N | ≤0.15 | 17.00-19.00 | 4.00-6.00 | 7.50-10.00 | ≤0.060 | ≤0.030 | ≤1.00 | - | ≤0.25 | － | ||
| 204 | 03Cr16Mn8Ni2N | ≤0.030 | 15.00-17.00 | 1.50-3.50 | 7.00-9.00 | 0.15-0.30 | |||||||
| 1Cr18Mn10Ni5Mo3N | ≤0.10 | 17.00-19.00 | 4.00-6.00 | 8.50-12.00 | 2.80-3.50 | 0.20-0.30 | |||||||
| 2Cr13Mn9Ni4 | 0.15-0.25 | 12.00-14.00 | 3.70-5.00 | 8.00-10.00 | |||||||||
| 2Cr15Mn15Ni2N | 0.15-0.25 | 14.00-16.00 | 1.50-3.00 | 14.00-16.00 | 0.15-0.30 | ||||||||
| 1Cr18Mn10Ni5Mo3N | ≤0.15 | 17.00-19.00 | 4.00-6.00 | 8.50-12.00 | ≤0.060 | ≤0.030 | 2.8-3.5 | ≤1.00 | - | 0.20-0.30 | - | ||
| 301 | 1Cr17Ni7 | ≤0.15 | 16.00-18.00 | 6.00-8.00 | ≤2.00 | ≤0.065 | ≤0.030 | - | ≤1.00 | - | - | - | |
| 302 | 1Cr18Ni9 | ≤0.15 | 17.00-19.00 | 8.00-10.00 | ≤2.00 | ≤0.035 | ≤0.030 | - | ≤1.00 | - | - | - | |
| 303 | Y1Cr18Ni9 | ≤0.15 | 17.00-19.00 | 8.00-10.00 | ≤2.00 | ≤0.20 | ≤0.030 | 1) | ≤1.00 | - | - | - | |
| 303se | Y1Cr18Ni9Se | ≤0.15 | 17.00-19.00 | 8.00-10.00 | ≤2.00 | ≤0.20 | ≤0.030 | - | ≤1.00 | - | - | Se≥0.15 | |
| 304 | 0Cr18Ni9 | ≤0.07 | 17.00-19.00 | 8.00-10.00 | ≤2.00 | ≤0.035 | ≤0.030 | - | ≤1.00 | - | - | - | |
| 304L | 00Cr19Ni10 | ≤0.030 | 18.00-20.00 | 8.00-10.00 | ≤2.00 | ≤0.035 | ≤0.030 | - | ≤1.00 | - | - | - | |
| 304N1 | 0Cr19Ni9N | ≤0.08 | 18.00-20.00 | 7.00-10.50 | ≤2.00 | ≤0.035 | ≤0.030 | - | ≤1.00 | - | 0.10-0.25 | - | |
| 304N2 | 0Cr18Ni10NbN | ≤0.08 | 18.00-20.00 | 7.50-10.50 | ≤2.00 | ≤0.035 | ≤0.030 | - | ≤1.00 | - | 0.15-0.30 | Nb≤0.15 | |
| 304LN | 00Cr18Ni10N | ≤0.030 | 17.00-19.00 | 8.50-11.50 | ≤2.00 | ≤0.035 | ≤0.030 | - | ≤1.00 | - | 0.12-0.22 | - | |
| 305 | 1Cr18Ni12 | ≤0.12 | 17.00-19.00 | 10.50-13.00 | ≤2.00 | ≤0.035 | ≤0.030 | - | ≤1.00 | - | - | - | |
| 309S | 0Cr23Ni13 | ≤0.08 | 22.00-24.00 | 12.00-15.00 | ≤2.00 | ≤0.035 | ≤0.030 | - | ≤1.00 | - | - | - | |
| 310S | 0Cr25Ni20 | ≤0.08 | 24.00-26.00 | 19.00-22.00 | ≤2.00 | ≤0.035 | ≤0.030 | - | ≤1.00 | - | - | - | |
| 316 | 0Cr17Ni12Mo2 | ≤0.08 | 16.00-18.50 | 10.00-14.00 | ≤2.00 | ≤0.035 | ≤0.030 | 2.00-3.00 | ≤1.00 | - | - | - | |
| 1Cr18Ni12Mo2Ti6) | ≤0.12 | 16.00-19.00 | 11.00-14.00 | ≤2.00 | ≤0.035 | ≤0.030 | 1.80-2.50 | ≤1.00 | - | - | Ti5(C%-0.02)~0.08 | ||
| 0Cr18Ni12Mo2Ti | ≤0.08 | 16.00-19.00 | 11.00-14.00 | ≤2.00 | ≤0.035 | ≤0.030 | 1.80-2.50 | ≤1.00 | - | - | Ti5*C%-0.70 | ||
| 316L | 00Cr17Ni14Mo2 | ≤0.030 | 16.00-18.00 | 12.00-15.00 | ≤2.00 | ≤0.035 | ≤0.030 | 2.00-3.00 | ≤1.00 | - | - | - | |
| 316N | 0Cr17Ni12Mo2N | ≤0.08 | 16.00-18.00 | 10.00-14.00 | ≤2.00 | ≤0.035 | ≤0.030 | 2.00-3.00 | ≤1.00 | - | 0.10-0.22 | - | |
| 316N | 00Cr17Ni13Mo2N | ≤0.030 | 16.00-18.50 | 10.50-14.50 | ≤2.00 | ≤0.035 | ≤0.030 | 2.00-3.00 | ≤1.00 | - | 0.12-0.22 | - | |
| 316J1 | 0Cr18Ni12Mo2Cu2 | ≤0.08 | 17.00-19.00 | 10.00-14.50 | ≤2.00 | ≤0.035 | ≤0.030 | 1.20-2.75 | ≤1.00 | 1.00-2.50 | - | - | |
| 316J1L | 00Cr18Ni14Mo2Cu2 | ≤0.030 | 17.00-19.00 | 12.00-16.00 | ≤2.00 | ≤0.035 | ≤0.030 | 1.20-2.75 | ≤1.00 | 1.00-2.50 | - | - | |
| 317 | 0Cr19Ni13Mo3 | ≤0.12 | 18.00-20.00 | 11.00-15.00 | ≤2.00 | ≤0.035 | ≤0.030 | 3.00-4.00 | ≤1.00 | - | - | - | |
| 317L | 00Cr19Ni13Mo3 | ≤0.08 | 18.00-20.00 | 11.00-15.00 | ≤2.00 | ≤0.035 | ≤0.030 | 3.00-4.00 | ≤1.00 | - | - | - | |
| 1Cr18Ni12Mo3Ti6 | ≤0.12 | 16.00-19.00 | 11.00-14.00 | ≤2.00 | ≤0.035 | ≤0.030 | 2.50-3.50 | ≤1.00 | - | - | Ti5(C%-0.02)~0.08 | ||
| 0Cr18Ni12Mo3Ti | ≤0.08 | 16.00-19.00 | 11.00-14.00 | ≤2.00 | ≤0.035 | ≤0.030 | 2.50-3.50 | ≤1.00 | - | - | Ti5*C%-0.70 | ||
| 317J1 | 0Cr18Ni16Mo5 | ≤0.040 | 16.00-19.00 | 15.00-17.00 | ≤2.00 | ≤0.035 | ≤0.030 | 4.00-6.00 | ≤1.00 | - | - | - | |
| 321 | 1Cr18Ni9Ti6 | ≤0.12 | 17.00-19.00 | 8.00-11.00 | ≤2.00 | ≤0.035 | ≤0.030 | - | ≤1.00 | - | - | Ti5(C%-0.02)~0.08 | |
| 0Cr18Ni10Ti | ≤0.08 | 17.00-19.00 | 9.00-12.00 | ≤2.00 | ≤0.035 | ≤0.030 | - | ≤1.00 | - | - | Ti≥5*C% | ||
| 347 | 0Cr18Ni11Nb | ≤0.08 | 17.00-19.00 | 9.00-13.00 | ≤2.00 | ≤0.035 | ≤0.030 | - | ≤1.00 | - | - | Nb≥10*C% | |
| XM7 | 0Cr18Ni9Cu3 | ≤0.08 | 17.00-19.00 | 8.50-10.50 | ≤2.00 | ≤0.035 | ≤0.030 | - | ≤1.00 | 3.00-4.00 | - | - | |
| XM15J1 | 0Cr18Ni13Si4 | ≤0.08 | 15.00-20.00 | 11.50-15.00 | ≤2.00 | ≤0.035 | ≤0.030 | - | 3.00-5.00 | - | - | 2) | |
| Austenite Ferrite Stainless Steel |
329J1 | 0Cr26Ni5Mo2 | ≤0.08 | 23.00-28.00 | 3.00-6.00 | ≤1.50 | ≤0.035 | ≤0.030 | 1.00-3.00 | ≤1.00 | - | - | 2) |
| 1Cr18Ni11Si4AlTi | 0.10-0.18 | 17.50-19.50 | 10.--120.. | ≤0.80 | ≤0.035 | ≤0.030 | - | 3.40-4.00 | - | - | Al 0.10-0.30; Ti 0.40-0.70 | ||
| 00Cr18Ni5MoSi2 | ≤0.030 | 18.00-19.50 | 4.50-5.50 | 1.00-2.00 | ≤0.035 | ≤0.030 | 2.50-3.00 | 1.30-2.00 | - | - | - | ||
| Ferrite Stainless Steel | 405 | 0Cr13Al | ≤0.08 | 11.50-14.50 | 3) | ≤1.00 | ≤0.035 | ≤0.030 | - | ≤1.00 | - | - | Al 0.10-0.30 |
| 410L | 00Cr12 | ≤0.030 | 11.00-13.00 | 3) | ≤1.00 | ≤0.035 | ≤0.030 | - | ≤1.00 | - | - | - | |
| 430 | 1Cr17 | ≤0.12 | 16.00-18.00 | 3) | ≤1.25 | ≤0.035 | ≤0.030 | - | ≤0.75 | - | - | - | |
| 430F | Y1Cr17 | ≤0.12 | 16.00-18.00 | 3) | ≤1.00 | ≤0.035 | ≥0.15 | 1) | ≤1.00 | - | - | - | |
| 434 | 1Cr17Mo | ≤0.12 | 16.00-18.00 | 3) | ≤1.00 | ≤0.035 | ≤0.030 | 0.75-1.25 | ≤1.00 | - | - | - | |
| 447J1 | 00Cr30Mo2 | ≤0.010 | 28.50-32.00 | - | ≤0.40 | ≤0.035 | ≤0.030 | 1.50-2.50 | ≤0.40 | - | ≤0.015 | - | |
| XM27 | 00Cr27Mo | ≤0.010 | 25.00-27.50 | - | ≤0.40 | ≤0.035 | ≤0.030 | 0.75-1.50 | ≤0.40 | - | ≤0.015 | - | |
| Martensite stainless steel | 403 | 1Cr12 | ≤0.15 | 11.50-13.00 | 3) | ≤1.00 | ≤0.035 | ≤0.030 | - | ≤0.50 | - | - | - |
| 410 | 1Cr13 | ≤0.15 | 11.50-13.50 | 3) | ≤1.00 | ≤0.035 | ≤0.030 | - | ≤1.00 | - | - | - | |
| 405 | 0Cr13 | ≤0.08 | 11.50-13.50 | 3) | ≤1.00 | ≤0.035 | ≤0.030 | - | ≤1.00 | - | - | - | |
| 416 | Y1Cr13 | ≤0.15 | 12.00-14.00 | 3) | ≤1.25 | ≤0.035 | ≥0.15 | 1) | ≤1.00 | - | - | - | |
| 410J1 | 1Cr13Mo | ≤0.08-0.18 | 11.50-14.00 | 3) | ≤1.00 | ≤0.035 | ≤0.030 | 0.30-0.60 | ≤0.60 | - | - | - | |
| 420J1 | 2Cr13 | 0.16-0.25 | 12.00-14.00 | 3) | ≤1.00 | ≤0.035 | ≤0.030 | - | ≤1.00 | - | - | - | |
| 420J2 | 3Cr13 | 0.26-0.35 | 12.00-14.00 | 3) | ≤1.00 | ≤0.035 | ≤0.030 | - | ≤1.00 | - | - | - |
| 420F | Y3Cr13 | 0.26-0.40 | 12.00-14.00 | 3) | ≤1.25 | ≤0.035 | ≥0.15 | 1) | ≤1.00 | - | - | - | |
| 3Cr13Mo | 0.28-0.35 | 12.00-14.00 | 3) | ≤1.00 | ≤0.035 | ≤0.030 | 0.50-1.00 | ≤0.80 | - | - | - | ||
| 4Cr13 | 0.36-0.45 | 12.00-14.00 | 3) | ≤0.80 | ≤0.035 | ≤0.030 | - | ≤0.60 | - | - | - | ||
| 431 | 1Cr17Ni2 | 0.11-0.17 | 16.00-18.00 | 1.50-2.50 | ≤0.80 | ≤0.035 | ≤0.030 | - | ≤0.80 | - | - | - | |
| 440A | 7Cr17 | 0.60-0.75 | 16.00-18.00 | 3) | ≤1.00 | ≤0.035 | ≤0.030 | 4) | ≤1.00 | - | - | - | |
| 440B | 8Cr17 | 0.75-0.95 | 16.00-18.00 | 3) | ≤1.00 | ≤0.035 | ≤0.030 | 4) | ≤1.00 | - | - | - | |
| 9Cr18 | 0.90-1.00 | 17.00-19.00 | 3) | ≤0.80 | ≤0.035 | ≤0.030 | 4) | ≤0.80 | - | - | - | ||
| 440C | 11Cr17 | 0.95-1.20 | 16.00-18.00 | 3) | ≤1.00 | ≤0.035 | ≤0.030 | 4) | ≤1.00 | - | - | - | |
| 440F | Y11Cr17 | 0.95-1.20 | 16.00-18.00 | 3) | ≤1.25 | ≤0.035 | ≥0.15 | 4) | ≤1.00 | - | - | - | |
| 9Cr18Mo | 0.95-1.10 | 16.00-18.00 | 3) | ≤0.80 | ≤0.035 | ≤0.030 | 0.40-0.70 | ≤0.80 | - | - | - | ||
| 9Cr18MoV | 0.85-0.95 | 17.00-19.00 | 3) | ≤0.80 | ≤0.035 | ≤0.030 | 1.00-1.30 | ≤0.80 | - | - | V0.07-0.12 | ||
| PH Stainless Steel | 630 | 0Cr17Ni4Cu4Nb | ≤0.07 | 15.50-17.50 | 6.50-7.50 | ≤1.00 | ≤0.035 | ≤0.030 | - | ≤1.00 | 3.00-5.00 | - | Nb 0.15-0.45 |
| 631 | 0Cr17Ni7Al | ≤0.09 | 16.00-18.00 | 6.50-7.50 | ≤1.00 | ≤0.035 | ≤0.030 | - | ≤1.00 | ≤0.50 | - | Al 0.75-1.50 | |
| 632 | 0Cr15Ni7Mo2Al | ≤0.09 | 14.00-16.00 | 6.50-7.50 | ≤1.00 | ≤0.035 | ≤0.030 | 2.00-3.00 | ≤1.00 | - | - | Al 0.75-1.50 |
Comparison table between domestic and foreign stainless steel and refractory steel grades
GB |
RUSSIA |
AISI,ASTM |
JIS |
BS |
DIN |
ISO |
|
| 1 | 1Cr18Ni9 | 12KH18H9 | 302,S30200 | SUS302 | 302S25 | X12CrNi88 | 12 |
| 2 | 0Cr18Ni9 | 08KH18H10 | 304,S30400,TP304 | SUS304 | 304S15 | X5CrNi89 | 11 |
| 3 | 00Cr19Ni10 | Z2CN18.09 | 304L,S30403,TP304L | SUS304L | 304S12 | X2CrNi189 | 10 |
| 4 | 1Cr18Ni9Ti | X10CrNiTi189 | |||||
| 5 | 0Cr18Ni10Ti | Z6CNT18.10 | 321,S32100,TP321 | SUS321 | 304S12,321920 | X10CrNiTi189 | 15 |
| 6 | 0Cr17Ni12Mo2 | 08KH17H13M2T | 316,S31600,TP316 | SUS316 | 316S16 | XSCrMo1810 | 20,20 |
| 7 | 0-Cr18Ni12Mo2 Ti | Z6CNDT17.12 | 320S17 | X10CrNIMoTi1810 | |||
| 8 | 00Cr17Ni14Mo2 | 03KH17H14M2 | 316L,S31603,TP316L | SUS316L | 316S12 | X2Cr | 19,19 |
| 9 | 0Cr25Ni20 | 310S,S31008,TP310S | SUS310S | ||||
| 10 | 0Cr19Ni13Mo3 | 08KH17H15M3T | 317,S31700,TP317 | SUS317 | 317S16 | 25 | |
| 11 | 00Cr19Ni13Mo3 | 03KH16H15M3 | 317L,S31703,TP3178 | SUSU317L | 317S12 | X2CrNiMo1816 | 24 |
| 12 | 1Cr18Ni12 | 12KH18H12T | 305,S30500 | SUSU305 | 305S19 | X5CrNi911 | 13 |
| 13 | 0Cr18Ni11Nb | 08KH18H12B | 347,S34700,TP347 | SUSU347 | 347S17 | X10CrNiNb189 | 16 |
| 14 | 1Cr17Ni7 | Z12CB17.07 | 301,S30100 | SUSU301 | 301S21 | X12CrNi188 | 14 |
| 15 | 0Cr23Ni13 | 309S,S30908 | SUS309S | ||||
| 16 | 0Cr17Ni12Mo2N | 316N,S31651 | SUS316N | ||||
| 17 | 00Cr17Ni12Mo2N | Z2CND7.12N | SUS316LN | X2CrNiMoN1812 | |||
| 18 | 0Cr18Ni12Mo2Cu | SUS316JI | |||||
| 19 | 00Cr18Ni14Mo2Cu2 | SUS316JIL | |||||
| 20 | 00Cr18Ni14MoCu2 | ZCNS18.09A2 | 304 | SUS304N |
.
