| Place of Origin: | China |
|---|---|
| Brand Name: | Bozhong |
| Certification: | ISO / TUV / DNV |
| Model Number: | 409 / 409l / 410 / 410s / 420 / 420j2 / 430 |
| Minimum Order Quantity: | negotiable |
| Price: | negotiable |
| Packaging Details: | seaworthy packing or as required |
| Delivery Time: | 3--10days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000TON/MONTH |
| Description: | Stainless Steel Sheet | Grade: | 409 / 409l / 410 / 410s / 420 / 420j2 / 430 |
|---|---|---|---|
| MOQ: | Different | Standard: | AISI, ASTM, DIN, EN, GB ,JIS |
| Dimension: | Accept Custom | ||
| High Light: | stainless steel sheet,stainless steel metal plate |
||
Specification
| Grade | 409,409L,410,410S,420,420J2,430 |
| Standard | ASTM |
| Thickness | Cold rolled:0.2-3.0mm Hot rolled:3.0-60mm |
| Length | 2000mm-8000mm or as customers' request |
| Surface finish | NO1,No.4,2B, BA, 6K, 8K, Hair Line with PVC |
Mechanical Properties
| Grade | YS(Mpa) ≥ | TS (Mpa) ≥ | El (%) ≥ | Hardness(HV) ≤ |
| 409 | 175 | 360 | 20 | 150 |
| 410 | 200 | 440 | 20 | 145 |
| 410S | 200 | 410 | 20 | 145 |
| 430 | 200 | 450 | 25 | 145 |
Chemical Composition
| Grade | C | Si | Mn | P≤ | S≤ | Cr | Mo | Ni | Other |
| 409 | ≤0.03 | ≤1.00 | ≤1.00 | 0.04 | 0.03 | 10.5-11.7 | - | ≤0.6 | Ti=6×C%~0.75 |
| 410 | ≤0.15 | ≤1.00 | ≤1.00 | 0.04 | 0.03 | 11.5-13.5 | - | - | - |
| 410S | ≤0.08 | ≤1.00 | ≤1.00 | 0.04 | 0.03 | 11.5-13.5 | - | - | - |
| 420 | ≤0.15 | ≤1.00 | ≤1.00 | 0.04 | 0.03 | 12.0-14.0 | - | - | - |
| 430 | ≤0.12 | ≤0.75 | ≤1.00 | 0.04 | 0.03 | 16-18 | - | ≤0.4 | - |
Surface Treatment
| Name | Feature | Specification | Picture |
| 2B | Bright | After cold rolling ,by heat treatment ,pickling or other equivalent treatment and lastly by cold rolling to given appropriate luster. | |
| BA | Polishing ,mirror | Processed with bright heat treatment after cold rolling | |
| Hairline | Line like hair | Hair grain grinding by appropriate particle size of material | |
| 6K/8K | Mirror, brighter than BA | Very bright, grinding and polishing surface by 1000# strop grain of abrasive belt |
Finish:BA,2B,2D,No.1,No.4,8k
BA - processed with bright heat treatment after cold rolling.
2B - after cold rolling, by heat treatment, pickling or other equivalent treatment and lastly by cold rolling to given appropriate luster.
2D – matt finish, best choice for deep drawing.
No.1-finished by hot rolling,annealing and packing,characterized by white pickled surface.
No.4-Polishing with No.150 to No.180 mesh abrasives.

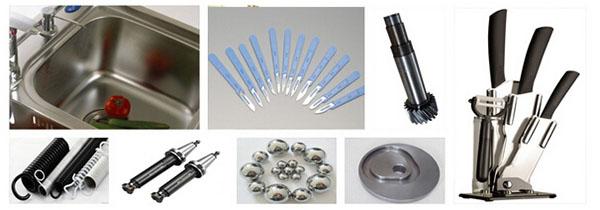

Applications of Stainless Steel Coils and Sheets:
1. Automotive:Automotive trim and molding/Difficult-to-form exhaust-system components, tubular manifolds, mufflers/Exhaust manifold and other exhaust-system components, catalytic converter shells.
2. Construction: Gutters and downspouts, roofing, siding.
3. Kitchenware: Cooking utensils, dishwashers, ovens, range hoods, refrigerators, skewers. 4. Chemical processing: Oil refinery equipment, oil burner and heater parts. 5. Appliances: Hot water tanks, residential furnaces.
