| Place of Origin: | China |
|---|---|
| Brand Name: | Bozhong |
| Certification: | ISO / TUV / DNV |
| Model Number: | 409 / 409L / 410 / 410S / 430 |
| Minimum Order Quantity: | negotiable |
| Price: | negotiable |
| Packaging Details: | seaworthy packing or as required |
| Delivery Time: | 3--10days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000TON/MONTH |

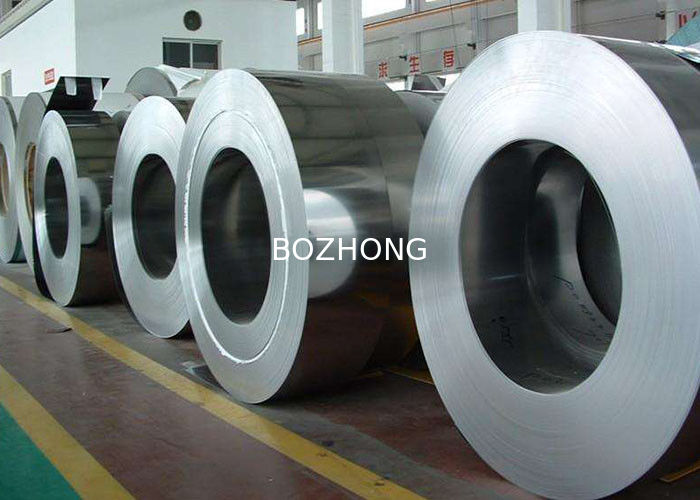

| Description: | Stainless Steel Sheet | Grade: | 409 / 409L / 410 / 410S / 430 |
|---|---|---|---|
| Standard: | AISI, ASTM, DIN, EN, GB ,JIS | Dimension: | Accept Custom |
| MOQ: | Different | ||
| High Light: | stainless steel strip roll,metal sheet coil |
||
Parameter
| Thickness | 0.15mm-2.0mm |
| Thickness tolerance | +/- 0.02mm |
| Width | 600mm-1250mm |
| Width tolerance | +/-2mm |
| Zinc coating | Z40-Z275 AZ30-AZ150 |
| Color | Grey white, sea blue, red or any RAL standard |
| Painting | Top:20+-5um Back:5μm---8μm |
| Standard | ASTM, AISI, DIN, GB,JIS |
| Material | SGCC,SGCD,SECC,SECD,DX51D+Z, S350GD, S450GD, S550GD |
| Technique | Cold rolled, hot-dipped galvanizing, color coated, galvanized, galvalume |
| Spangle | Zero spangle, regular spangle or normal spangle |
| Surface Structure | Galvanized, galvalume, zero spangle, regular spangle or normal spangle |
| Surface treatment | Chromate and oiled, chromate and non-oiled |
| Packing | Export standard, or according to client requirement |
| Min order | 500 tons |
| Coil weight | 3-6tons or as client requirement. |
| Coil ID | 508/610mm |
| Grade | C | Si | Mn | P≤ | S≤ | Cr | Mo | Ni | Other |
| 409 | ≤0.03 | ≤1.00 | ≤1.00 | 0.04 | 0.03 | 10.5-11.7 | - | ≤0.6 | Ti=6×C%~0.75 |
| 410 | ≤0.15 | ≤1.00 | ≤1.00 | 0.04 | 0.03 | 11.5-13.5 | - | - | - |
| 410S | ≤0.08 | ≤1.00 | ≤1.00 | 0.04 | 0.03 | 11.5-13.5 | - | - | - |
| 420 | ≤0.15 | ≤1.00 | ≤1.00 | 0.04 | 0.03 | 12.0-14.0 | - | - | - |
| 430 | ≤0.12 | ≤0.75 | ≤1.00 | 0.04 | 0.03 | 16-18 | - | ≤0.4 | - |
| Grade | YS(Mpa) ≥ | TS (Mpa) ≥ | El (%) ≥ | Hardness(HV) ≤ |
| 409 | 175 | 360 | 20 | 150 |
| 410 | 200 | 440 | 20 | 145 |
| 410S | 200 | 410 | 20 | 145 |
| 430 | 200 | 450 | 25 | 145 |
| Grade | Application |
| 409 | Automobile exhaust pipe, silencer |
| 410 | Flat springs, knives, kitchen utensils and hand tools |
| 420 | Cutting tool, measuring tool, dental and surgical instruments, pump shafts, plastic molds and dies, steel balls, scissors, gear shafts,cams, pivots, Lens molds |
| 430 | Sinks, sink rims, appliance trim, counter tops, dish washers, range hoods, flatware, architectural uses, roofing, siding and restaurant equipment. |
