| Brand Name: | BOZHONG |
|---|---|
| Certification: | ISO / TUV / DNV |
| Model Number: | Aluminum Alloy Pipe 5005, 5052, 5754, 5083 |
| Minimum Order Quantity: | negotiable |
| Price: | negotiable |
| Packaging Details: | seaworthy packing or as required |
| Delivery Time: | 3--10days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000TON/MONTH |
| Description: | Aluminum Alloy Pipe 5005, 5052, 5754, 5083 | Grade: | 5005, 5052, 5754, 5083 |
|---|---|---|---|
| Wall Thickness: | 0.4mm-80mm | Temper: | H32 H112 H111 H24 |
| Feature: | High Tensile Strength | Packing: | Blank Waterproof Paper |
| High Light: | seamless alloy pipe,aluminum round tubing |
||
This major series of this series aluminum pipe provided by Bozhong includes 5005, 5052, 5754, 5083 series.

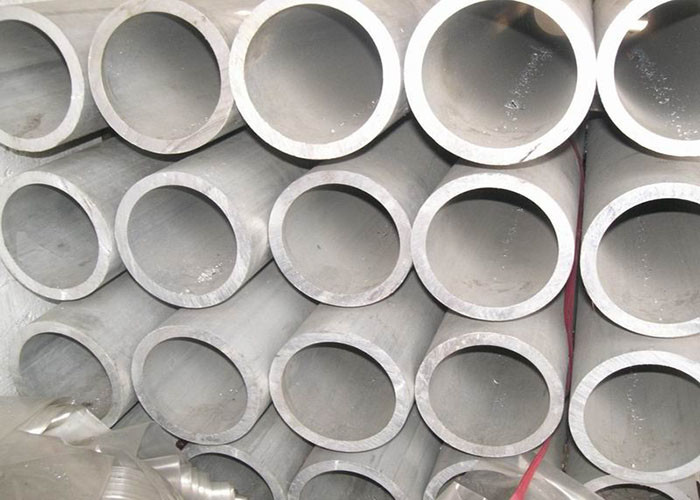

5000 Series Aluminum pipe
Length:2000-8000mm
Application:decoration, outer shell for household products
Packing:blank waterproof paper , kraft, wooden case or pallet (fumigation report for the wooen packing material )
Grade:5005 5052 5083 5086 5154 5182 5251 5754 etc.
Features
Very good elongation, anticorrosion performance
5000 Aluminum pipe Features
The main ingredient of this series aluminum pipe is magnesium element and the content is between 3% and 5%. It is also called aluminum magnesium alloy. With its low density, it features high tensile strength and elongation. This series aluminum pipe is a commonly used and mature series in China.
5000 Aluminum pipe Applications With the same area of other series, the weight of this aluminum pipe is lighter. As a result, it is used in aviation, such as in the fuel tanks in airplanes. It is widely used in conventional industries. This aluminum pipe can be used in continuously casting and rolling. It can be hot rolled. As a result, it can be used in oxidation and deep processing.
|
Grade |
Chemical composition |
||||||||||
|
Si |
Fe |
Cu |
Mn |
Mg |
Cr |
Ni |
Zn |
|
Ti |
Zr |
|
|
5019 |
0.4 |
0.5 |
0.1 |
0.10~0.6 |
4.5~5.6 |
0.2 |
- |
0.2 |
Mn+Cr:0.10~0.6 |
0.2 |
- |
|
5005 |
0.3 |
0.7 |
0.2 |
0.2 |
0.50~1.1 |
0.1 |
- |
0.25 |
- |
- |
- |
|
5050 |
0.4 |
0.7 |
0.2 |
0.1 |
1.1~1.8 |
0.1 |
- |
0.25 |
- |
- |
- |
|
5251 |
0.4 |
0.5 |
0.15 |
0.10~0.50 |
1.7~2.4 |
0.15 |
- |
0.15 |
- |
0.15 |
- |
|
5052 |
0.25 |
0.4 |
0.1 |
0.1 |
2.2~2.8 |
0.15~0.35 |
- |
0.1 |
- |
- |
- |
|
5754 |
0.4 |
0.4 |
0.1 |
0.5 |
2.6~3.6 |
0.3 |
- |
0.2 |
Mn+Cr:0.10~0.6 |
0.15 |
- |
|
5056 |
0.3 |
0.4 |
0.1 |
0.05~0.20 |
4.55.6 |
0.05~0.20 |
- |
0.1 |
- |
- |
- |
|
5456 |
0.25 |
0.4 |
0.1 |
0.50~1.0 |
4.7~5.5 |
0.05~0.20 |
- |
0.25 |
- |
0.2 |
- |
|
5082 |
0.2 |
0.35 |
0.15 |
0.15 |
4.0~5.0 |
0.15 |
- |
0.25 |
- |
0.1 |
- |
|
5182 |
0.2 |
0.35 |
0.15 |
0.20~0.50 |
4.0~5.0 |
0.1 |
- |
0.25 |
- |
0.1 |
- |
|
5000 series aluminum alloy sheet physical properties |
|
|
Tension strength |
σb (MPa) ≥270 |
|
Yield strength |
σ0.2 (MPa)≥120 |
|
temper |
H32 H112 H111 H24 |
|
Hardness |
HB45-75 |
|
Elongation |
>12 |
Note:
Special dimensions can be produced according to your requirement
Bozhong is a professional manufacturer and supplier of 5000 aluminum pipe based in China. We also offer aluminum coil, aluminium slit coil, aluminum sheet, coated aluminum coil, diamond aluminum tread pipe,and more. Whenever you have a need for any of our products, please feel free to contact us.
