| Place of Origin: | China |
|---|---|
| Brand Name: | BOZHONG |
| Certification: | IOS,SGS |
| Model Number: | SS316 |
| Minimum Order Quantity: | 500KG |
| Price: | negotiable |

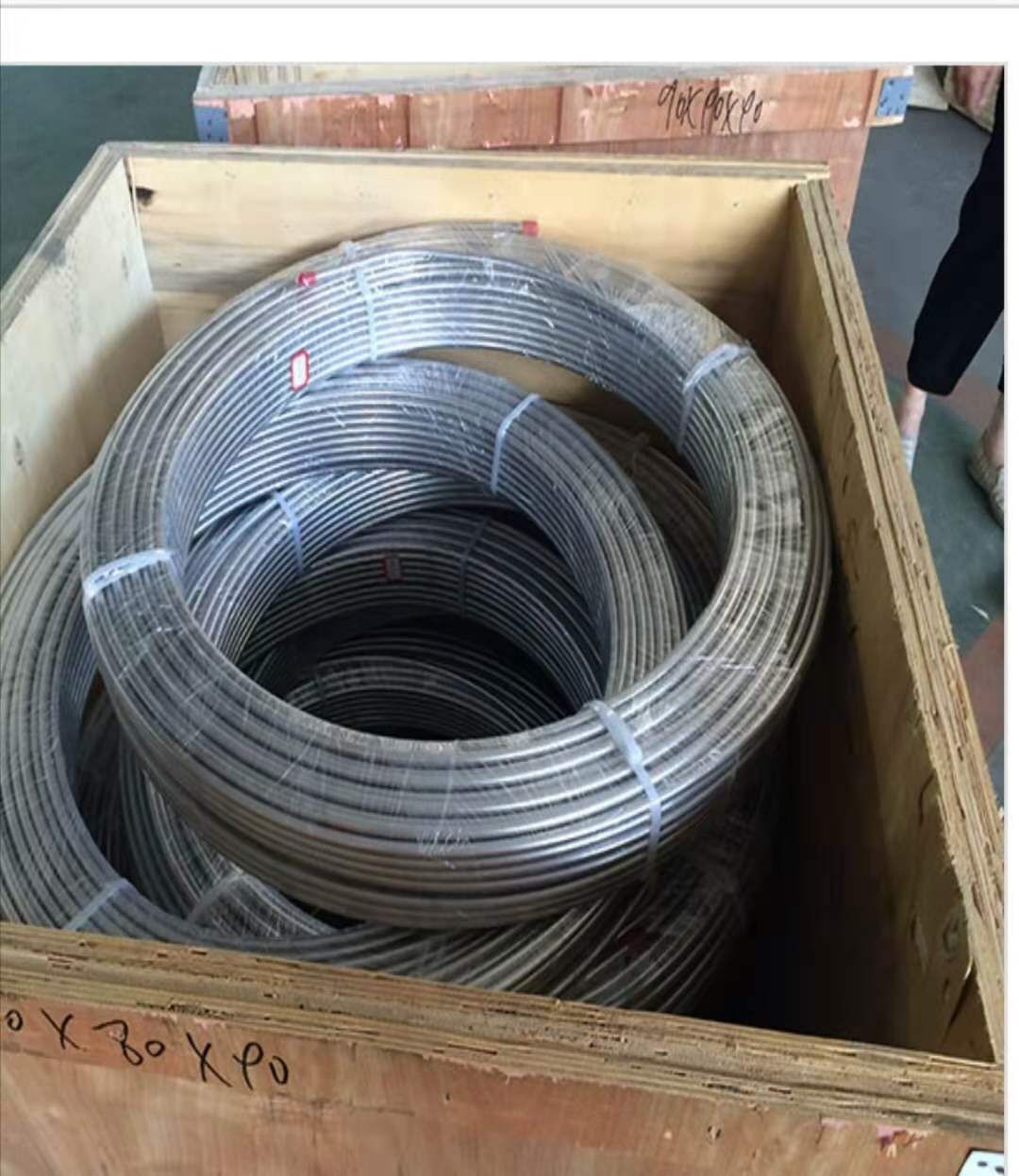

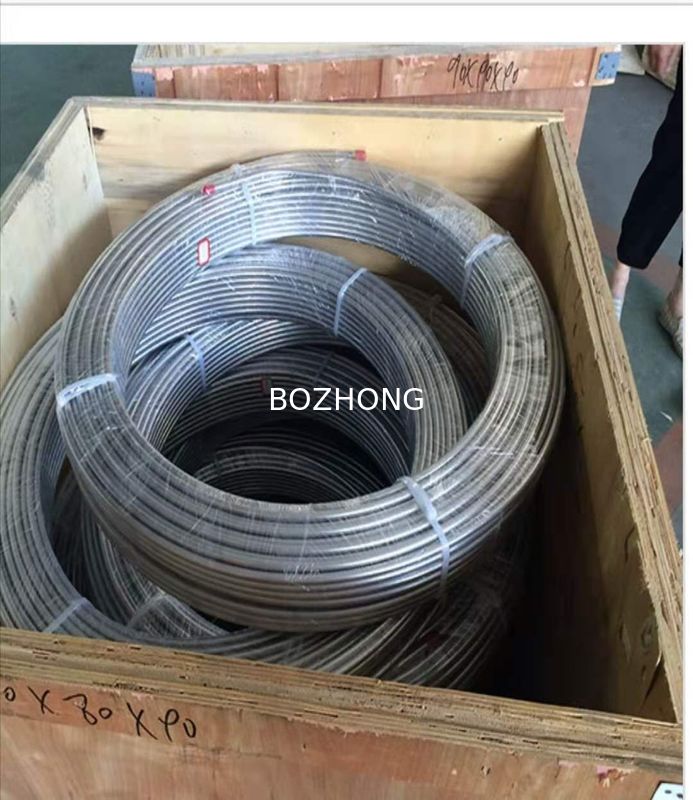

| Packaging Details: | Standard Seaworthy Package |
| Delivery Time: | 7-25DAYS ACCORDING TO YOUR ORDER QUANTITY |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1000TONS PER MONTH |

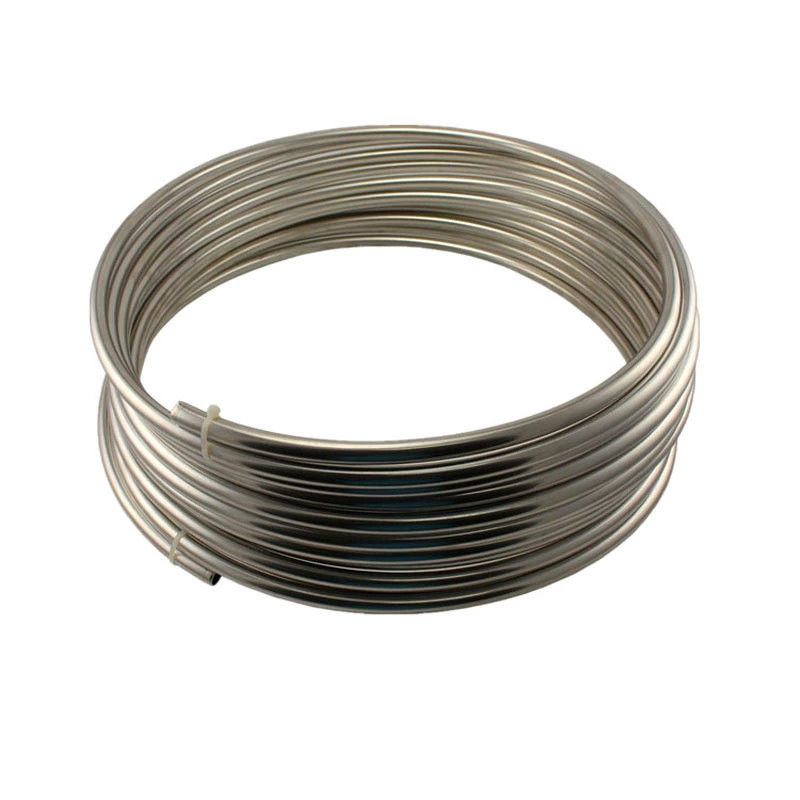

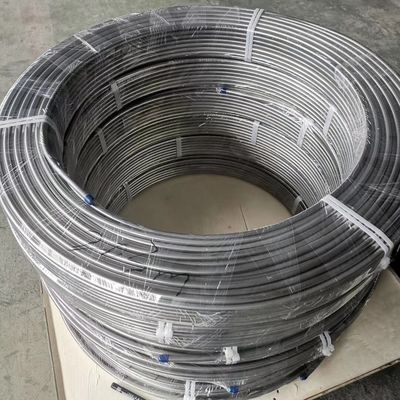

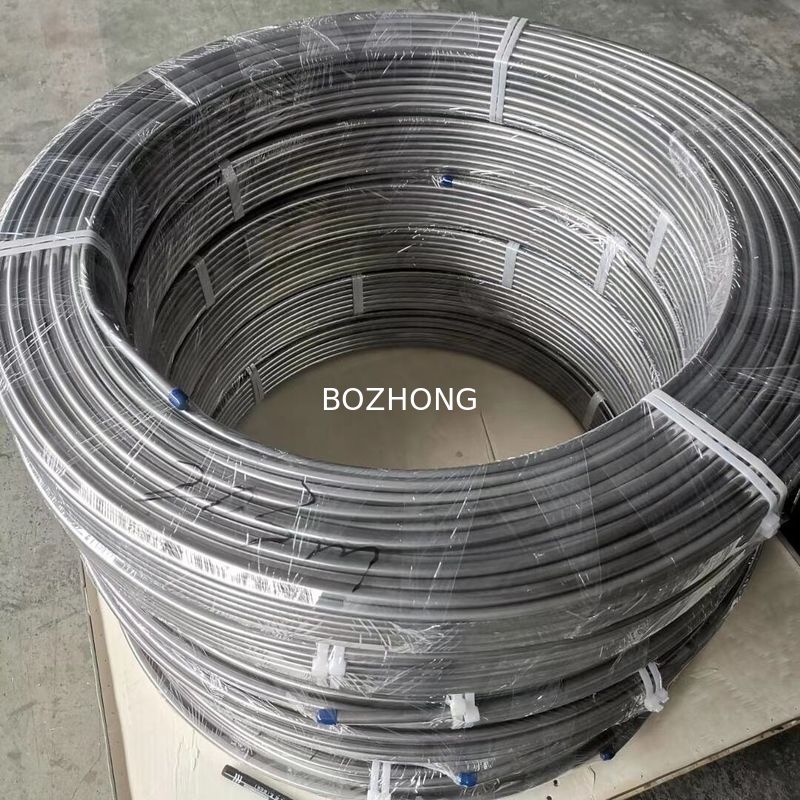

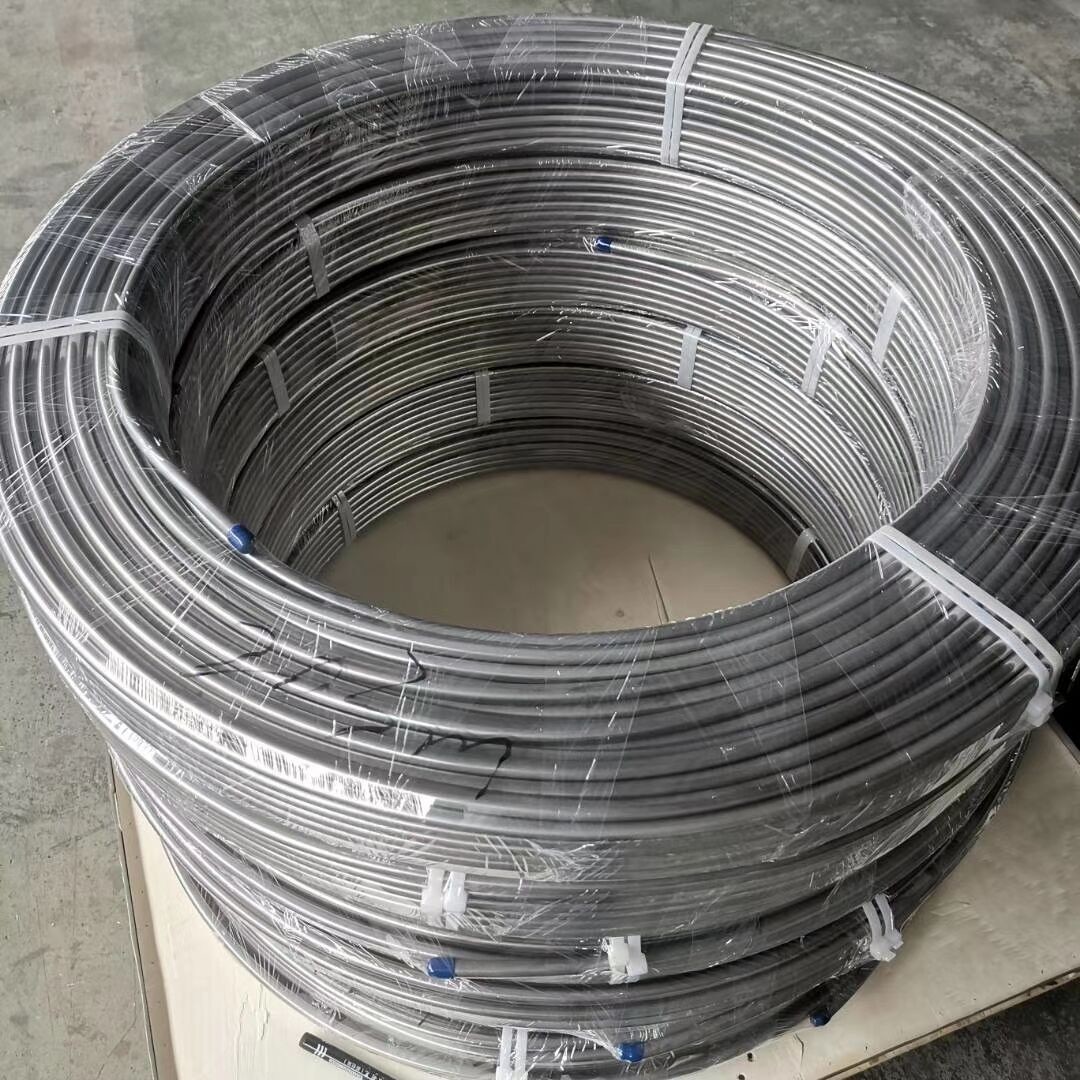

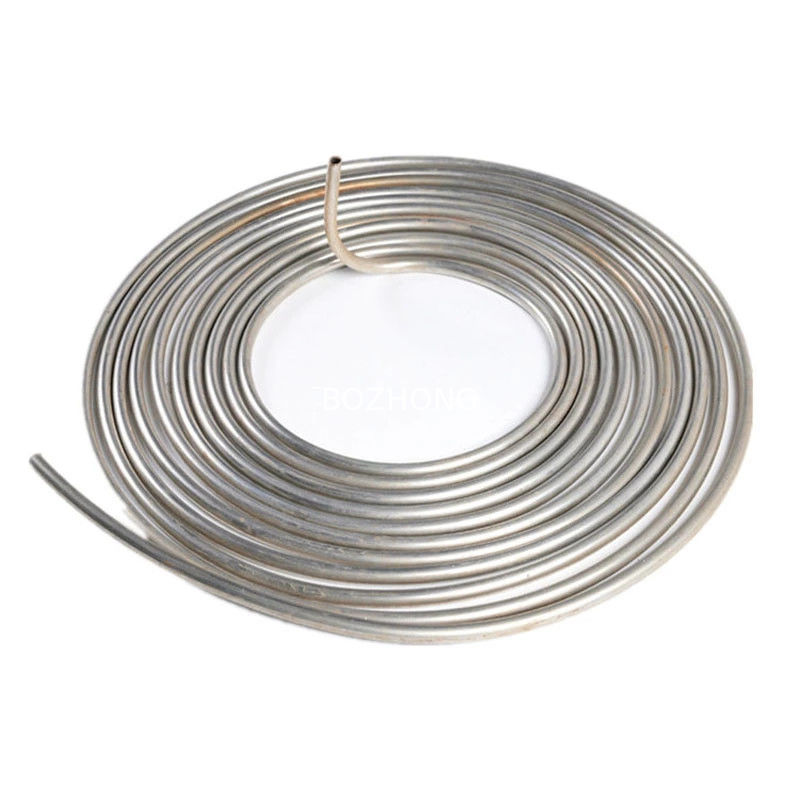

| Product Name: | Coiled Stainless Steel Tube | Grade: | 304 304L 316 316L |
|---|---|---|---|
| Surface Treament: | Polished Bright | Model: | 1/4"*0.035" 3/8"*0.049" |
| Standard: | JIS, AiSi, ASTM, GB, DIN, EN | Type: | Seamless |
| Processing Service: | Bending, Welding, Decoiling, Punching, Cutting, Moulding | ||
| High Light: | Seamless Coiled SS316 Tube,Dia 19mm Coiled SS304 Tube,ASTM A269 Bending SS304 Tube |
||
Feature:
1. Production standards: ASTM A269/A249, ASTM A798
2. Commonly used stainless steel material TP304, TP316
Other options for the material 304L, 316L, 201,202,310S, 321
3. Main application and field of use: refrigeration equipment, evaporator, gas liquid delivery, condenser, beverage machine.
4. General delivery pipe status: half hard / soft bright annealing
5. Specifications range: diameter 6mm-19mm
6. The tolerance range: diameter: + 0.1mm, wall thickness: + 10%, length: -0/+6mm
7. Annual output: 600 tons
|
O.D (mm)
W.T (mm) |
3.0-4.0 | 4.01-6.00 | 6.01-8.00 | 8.01-10.0 | 10.01-12.7 | 12.71-19.05 | 19.05-25.4 |
| 0.30-0.40 | √ | √ | √ | ||||
| 0.41-0.50 | √ | √ | √ | √ | |||
| 0.51-0.60 | √ | √ | √ | √ | √ | ||
| 0.61-0.70 | √ | √ | √ | √ | √ | √ | |
| 0.71-1.00 | √ | √ | √ | √ | √ | √ | √ |
| 1.01-1.20 | √ | √ | √ | √ | √ | √ | |
| 1.21-1.50 | √ | √ | √ | √ | |||
| 1.51-2.0 | √ | √ | √ |
