| Brand Name: | BOZHONG |
|---|---|
| Certification: | ISO / TUV / DNV |
| Model Number: | Stainless Steel Elbow |
| Minimum Order Quantity: | negotiable |
| Price: | negotiable |
| Packaging Details: | seaworthy packing or as required |
| Delivery Time: | 3--10days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000TON/MONTH |
| Description: | Stainless Steel Elbow | GRADE: | 304, 304L, 321, 316, 316L, Etc. |
|---|---|---|---|
| Standard: | ASME, MSS, HG, DIN, JIS, GB | Type: | 90 Degree Long Radius, 90 Degree Short Radius, 45 Degree Long Radius, 180 Degree Return Band |
| Other Name: | Inox Elbow | Application: | Electricity, Petroleum, Gas, Petrifaction |
| High Light: | butt weld fittings,stainless steel reducer |
||
If you are planning to buy stainless steel elbow China from professional stainless steel elbow, inox elbow manufacturers China and suppliers China, please feel free to contact Bozhong Group, equipped with productive factory, we are always at your service.
welded elbows are widely used in heavy industries. An elbow is a type of pipe fitting which could link two pipes together. With experience in manufacturing stainless steel fittings more than a decade, our products and services are guaranteed.
1. Material: 304, 304L, 321, 316, 316L, etc.
2. Standard: ASME, MSS, HG, DIN, JIS, GB
3. Type: 90 degree Long Radius, 90 degree Short Radius, 45 degree Long Radius, 180 degree Return Band
We offer Sanitary Fittings, Stainless Steel Sanitary Fittings, and Stainless Steel Tube Fittings that are manufactured using optimum quality stainless steel. Our wide array of sanitary stainless steel tee is known among the customer’s due to its tensile strength. These Steel Tube Fittings in various grades and finishes as per the needs.

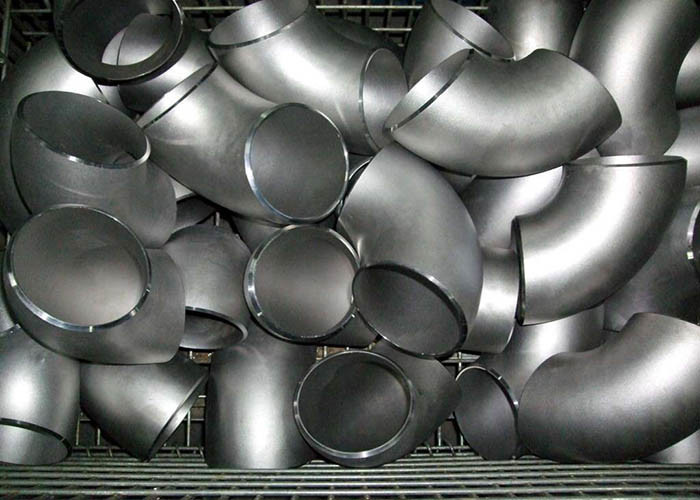

Specification of Stainless Steel Butt Welded Elbow:
| Specification | Type | Data |
| Size | 90 degree Long/Short Radius 45 degree Long Radius |
Seamless 1/2”-20”(DN15-DN500) Welded 1/2”-48” (DN15-DN1200) |
| 180 degree Return Band | Seamless 1/2”-4”(DN15-DN100) | |
| Wall Thickness | 90 degree Long/Short Radius 45 degree Long Radius |
SCH5S-SCH160 |
| 180 degree Return Band | SCH5S-SCH80S | |
| Material | 304, 304L, 321, 316, 316L, etc. | |
| Standard | GB/T12459, GB/T13401, SH3408, SH3409, HG/T21635 | |
| HG/T21631, ASME B16.9, MSS SP-43, DIN 2605, JIS B2313 | ||
Types of Stainless Steel Butt Welded Elbow :
Technical Parameter:
| Butt-welding Elbows ANSI B16.9 | ||||
| Nominal Diameter | Outside
Diameter/mm |
Center to End/mm | ||
|
45 degree Elbow
|
90 degree Elbow | |||
| DN | OD | Long Radius | Long Radius | Short Radius |
| 1/2 | 21.3 | 15.7 | 38.1 | - |
| 3/4 | 26.7 | 19.1 | 38.1 | - |
| 1 | 33.4 | 22.4 | 38.1 | 25.4 |
| 1 1/4 | 42.2 | 25.4 | 47.8 | 31.8 |
| 1 1/2 | 48.3 | 28.4 | 57.2 | 38.1 |
| 2 | 60.3 | 35.1 | 76.2 | 50.8 |
| 2 1/2 | 73 | 44.5 | 95.3 | 63.5 |
| 3 | 88.9 | 50.8 | 114.3 | 76.2 |
| 3 1/2 | 101.6 | 57.2 | 133.4 | 88.9 |
| 4 | 114.3 | 63.5 | 152.4 | 101.6 |
| 5 | 141.3 | 79.2 | 190.5 | 127 |
| 5 | 168.3 | 95.3 | 228.6 | 152.4 |
| 8 | 219.1 | 127 | 304.8 | 203.2 |
| 10 | 273.1 | 158.8 | 381 | 254 |
| 12 | 323.9 | 190.5 | 457.2 | 304.8 |
| 14 | 355.6 | 222.3 | 533.4 | 355.6 |
| 16 | 406.4 | 254 | 609.6 | 406.4 |
| 18 | 457.2 | 285.8 | 685.8 | 457.2 |
| 20 | 508 | 317.5 | 762 | 508 |
| 22 | 558.8 | 342.9 | 838.2 | 558.8 |
| 24 | 609.6 | 381 | 914.4 | 609.6 |
Application of Stainless Steel Butt Welded Elbow:
Electricity, Petroleum, Gas, Petrifaction, Chemical Industry, Ship, Heating, Papermaking, Metallurgy
Package of Stainless Steel Butt Welded Elbow:
Wooden Bracket or according to your request
