| Place of Origin: | CHINA |
|---|---|
| Brand Name: | BOZHONG |
| Certification: | ISO / TUV / DNV |
| Model Number: | 310, 310S Stainless Steel Flange |
| Minimum Order Quantity: | negotiable |
| Price: | negotiable |
| Packaging Details: | seaworthy packing or as required |
| Delivery Time: | 3--10days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000TON/MONTH |
| Description: | 310, 310S Stainless Steel Flange | GRADE: | 310, 310S |
|---|---|---|---|
| SHAPE: | Round Or As Required | Sealing Surface: | RF |
| Type: | Welding Flange | Connection: | Welding |
| High Light: | stainless steel plate flange,ss blind flange |
||

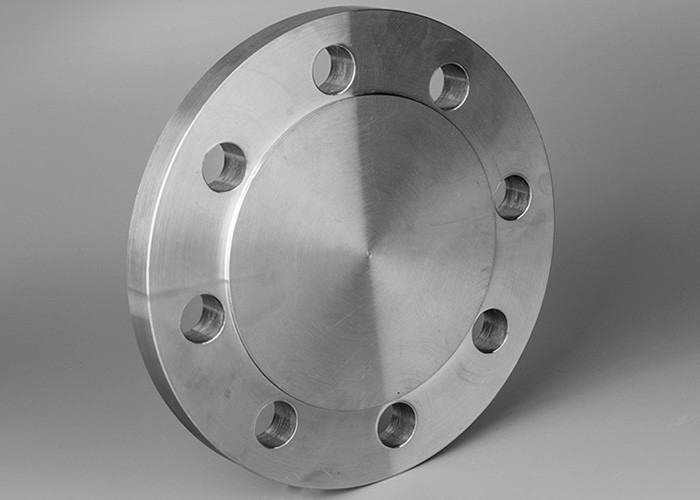

310 Stainless Steel Flanges of Pipe fitting
Size range: 1/2" to 80" DN10 to DN2000
Design: welding neck, slip on, blind, socket welding, threaded, lap-joint
Pressure: PN2.5,PN6,PN10,PN16,PN25,PN40, class150, class300, class600, class900, class1500, class2500.
Wall thickness for welding neck flange: STD, SCH40, SCH80, SCH160. SCHXXS
Material: carbon steel , stainless steel ,alloy steel
Coating: black paint, yellow transparent paint, cold and hot dip galvanized
Specification:
1. Stainless Steel: ASTM A 182, A 240
2. Grade : F 304, 304L, 304H, 316, 316L, 316Ti, 310, 310S, 321, 321H, 317, 347, 347H,904L, Duplex stainless steel UNS S31803, 2205, Super Duplex stainless steel UNS S32750
3. Size: ANSI B 16.5 from 1/2″ to 24″ and classes150 to 2500 (complete range)
4. Pressure: ANSI class 150 to 2,500
Surface:
Raised face (RF)
The scope of European system for stainless steel flanges
| Sealing surface type | Nominal pressure PN / MPa (bar) | |||||||||
| 0.25 | 0.6 | 1 | 1.6 | 2.5 | 4 | 6.3 | 5 | 16 | 25 | |
| -2.5 | -6 | -10 | -16 | -25 | -40 | -63 | -100 | -160 | -250 | |
| Raised face (RF) | DN10-300 | DN10-2000 | DN10-1000 | DN10-600 | DN10-400 | DN10-300 | DN10-250 | |||
| Convex surface (MFM) | - | DN10-600 | DN10-400 | DN10-300 | - | |||||
| Tongue and groove (TG) | - | DN10-600 | DN10-400 | DN10-300 | - | |||||
| Plane (FF) | DN10-3000 | DN10-2000 | - | |||||||
| Ring joint face (RJ) | - | DN15-400 | DN15-300 | DN15-250 | ||||||
| The scope of American system for stainless steel flanges | ||||||||||
| Sealing surface type | Nominal pressure PN / MPa (Class) | |||||||||
| 2 | 5 | 11 | 15 | 26 | 42 | |||||
| (150LB) | (300LB) | (600LB) | (900LB) | (1500LB) | (2500LB) | |||||
| Raised face (RF) | DN15-600 | DN15-300 | ||||||||
| (1/2 “to 24″) | (1/2 “-12″) | |||||||||
| Convex surface (MFM) | - | DN15-600 | DN15-65 | DN15-300 | ||||||
| (1/2 “to 24″) | (1/2 “-2.1 / 2″) | (1/2 “-12″) | ||||||||
| Tongue and groove (TG) | - | DN15-600 | DN15-65 | DN15-300 | ||||||
| (1/2 “to 24″) | (1/2 “-2.1 / 2″) | (1/2 “-12″) | ||||||||
| Plane (FF) | DN15-600 | - | ||||||||
| (1/2 “to 24″) | ||||||||||
| Ring joint face (RJ) | DN25-600 | DN15-600 | DN15-300 | |||||||
| (1/2 “to 24″) | (1/2 “to 24″) | (1/2 “-12″) | ||||||||
These are mainly used on heat coupling of pipes when there is possibility of expansion of the section while bending stress on the coupling.Application:
Oil Field, Offshore, Water System, Shipbuilding, Natural Gas, Electric Power, Pipe Projects etc.
Package:
The stainless steel flange products are packed according to the international standards and regulations as well as to customer’s requests. We would take great care to avoid any damage during storage or transportation of the stainless steel flanges.
