| Place of Origin: | China |
|---|---|
| Brand Name: | BOZHONG |
| Certification: | ISO / TUV / DNV |
| Model Number: | S136 |
| Minimum Order Quantity: | negotiable |
| Price: | negotiable |
| Packaging Details: | seaworthy packing or as required |
| Delivery Time: | 3--10days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000TON/MONTH |
| Description: | S136 Mould Steel Flat Sheet Metal Plate For Making Mask Machine | Grade: | S136 |
|---|---|---|---|
| Surface: | Degreased, Anodized, Mill Finish Etc | Shape: | Sheet |
| Origin Country: | Shanghai China | Model: | S136 |
| High Light: | 400 plate,abrasion resistant sheet |
||

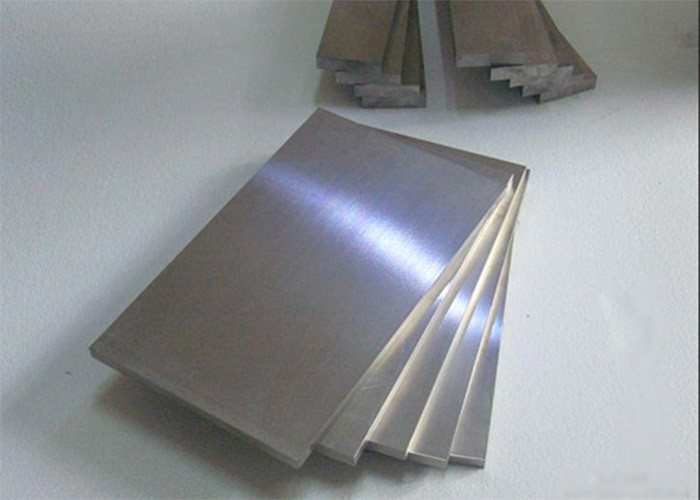

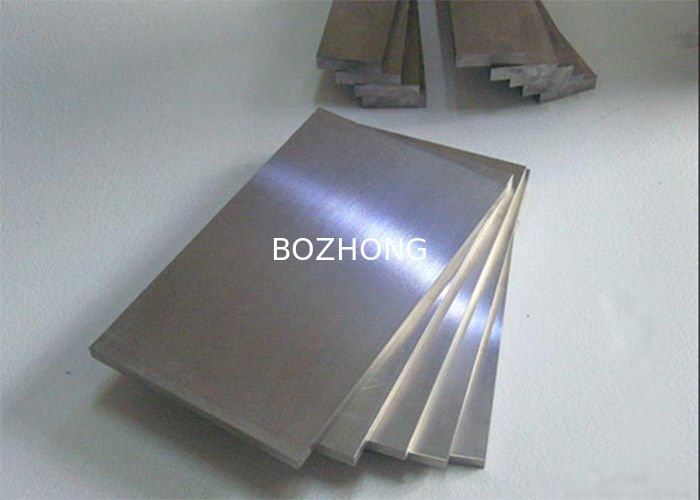

S136 Mould Steel Flat Sheet Metal Plate
1. DIN 1.2316/AISI 420/S136/GB3Cr17NiMnMo
2. Hot rolled or forged condition, annealing or Pre-harden, black or machined surface
3. Hardness: ≤229HBS or 32~36HRC
4. Hot rolled technology: EAF+LF+VD
Forged technology: EAF+LF+VD+ESR+Forging +Q T + Machined surface
5. hot treatment quench :1020-1050°C,oil cooling or quenching liquid colling,hardnessHRC≥45
backfire:temperture (°C):, 100, 200, 300, 400, 500, 600
hardness (HRC): 49, 47, 46, 46, 47, 32
6. Production leadtime: 7~10 days
7. Ultrasonic test standards: Sep1921-84,Gr.3, Class C/C or D/D
8. Chemical composition:
| C | Si | Mn | P≤ | S≤ | Cr | Mo | Ni |
|---|---|---|---|---|---|---|---|
| 0.3-0.43 | ≤1.00 | ≤1.00 | 0.030 | 0.030 | 1.40-1.7 | 0.8-1.3 | ≤1.00 |
9.Compared grades(based on usage):
| GB | ASTM | DIN | ASSAB |
|---|---|---|---|
| 3Cr17NiMnMo | 420 | 1.2316 | S136 |
