| Place of Origin: | China |
|---|---|
| Brand Name: | Bozhong |
| Certification: | IOS,SGS |
| Model Number: | 17-7 pH |
| Minimum Order Quantity: | 500KG |
| Price: | negotiable |
| Packaging Details: | Standard Seaworthy Package |
| Delivery Time: | 7-25DAYS ACCORDING TO YOUR ORDER QUANTITY |
| Payment Terms: | L/C |
| Supply Ability: | 100TONS PER MONTH |
| Material: | Stainless Steel And Special Alloys | Standard: | AMS 5604, ASTM A 693, ASME SA 693 |
|---|---|---|---|
| UNS: | S17400 | Grade: | 17-7 PH |
| Shape: | Round,Square,Flat,Angle | Application: | Construction,Industry,surgical Tools |
| Certification: | ISO,BV,SGS,Mill Test Certificate | Dimensions: | 3-400mm |
| Length: | Customers' Requirements | ||
| High Light: | S17400 Stainless Steel Bar,AMS 5604 Stainless Steel Bar,400mm Stainless Steel Solid Bar |
||

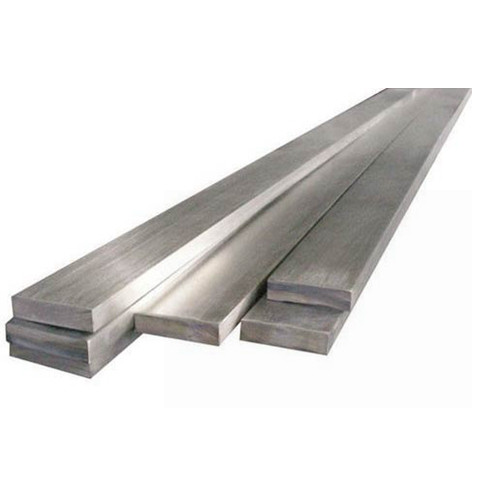

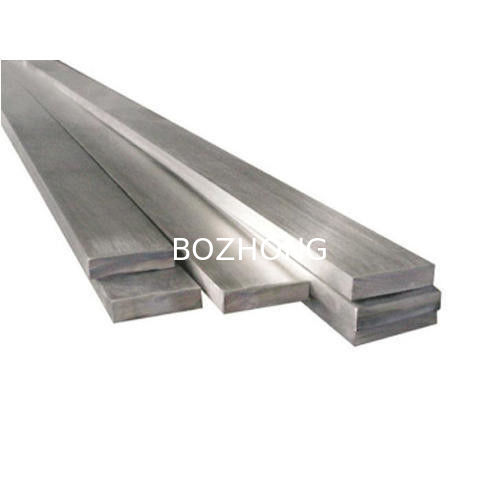

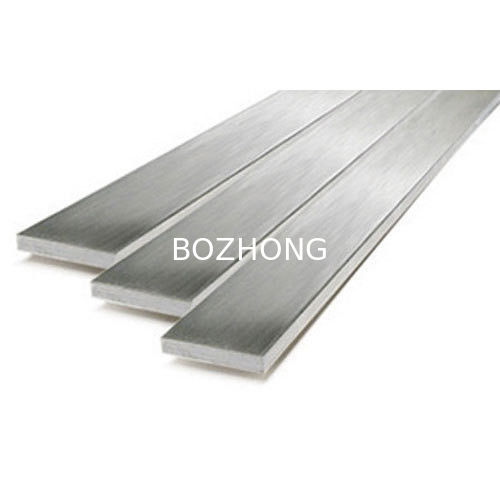

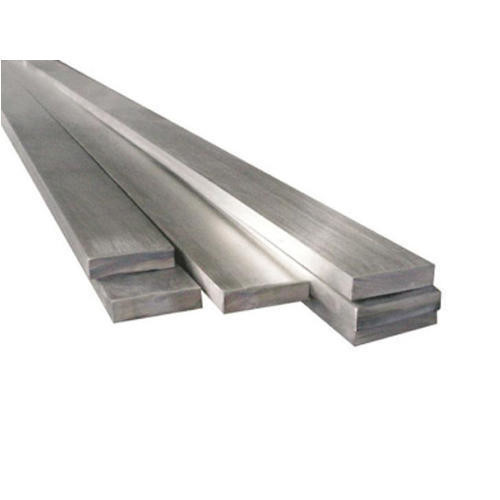

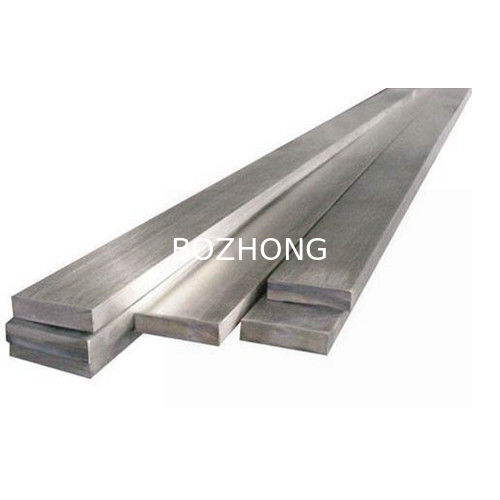

17-7 pH Stainless Steel Plate/ Flat Bar/Sheet With Good Stock Price
17-4PH offers high strength and hardness along with excellent corrosion resistance.17-4 PH has been used for a variety of applications including oil field valve parts, chemical process equipment, aircraft fittings, fasteners, pump shafts, nuclear reactor components, gears, paper mill equipment, missile fittings, and jet engine parts.
17-4 PH is a registered trademark of AK Steel.
| NS: | S17400 |
| Specifications: | AMS 5604, ASTM A 693, ASME SA 693 |
| International Specifications: | Euronorm: X5CrNiCuNb16.4 Werstoff# 1.4542 |
The following table shows the chemical composition of grade 17-4 stainless steel.
| Element | Content (%) |
|---|---|
| Iron, Fe | 73 |
| Chromium, Cr | 15.0 - 17.5 |
| Nickel, Ni | 3.0 - 5.0 |
| Copper, Cu | 3.0 - 5.0 |
| Manganese, Mn | 1.0 |
| Silicon, Si | 1.0 |
| Tantalum, Ta | 0.45 |
| Niobium, Nb (Columbium, Cb) | 0.45 |
| Nb + Ta | 0.15 - 0.45 |
| Carbon, C | 0.070 |
| Phosphorous, P | 0.040 |
| Sulfur, S | 0.030 |
The physical properties of grade 17-4 stainless steel are given in the following table.
| Properties | Metric | Imperial |
|---|---|---|
| Density | 7.75 g/cm3 | 0.280 lb/in³ |
The mechanical properties of annealed grade 17-4 stainless steel are displayed in the following table.
| Properties | Metric | Imperial |
|---|---|---|
| Shear modulus | 77.4 GPa | 11200 ksi |
| Elastic modulus | 190-210 GPa | 27557-30458 ksi |
| Poisson's ratio | 0.27-0.30 | 0.27-0.30 |
| Hardness, Brinell | 352 | 352 |
| Hardness, Knoop (estimated from Rockwell C) | 363 | 363 |
| Hardness, Rockwell C | 36 | 36 |
| Hardness, Vickers (estimated from Rockwell C) | 349 | 349 |
