| Place of Origin: | China |
|---|---|
| Brand Name: | BOZHONG |
| Certification: | IOS,SGS |
| Model Number: | S690QL 1 |
| Minimum Order Quantity: | 10PCS |
| Price: | USD0.8-1.1/KG FOB |
| Packaging Details: | Standard Seaworthy Package |
| Delivery Time: | 7-25DAYS ACCORDING TO YOUR ORDER QUANTITY |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10000TONS PER MONTH |
| Material: | S690QL | Standard: | EN 10025-6 |
|---|---|---|---|
| Heat Treatment: | Q+T（quenched And Tempered） | Thickness: | 8-200mm |
| Width: | 100-2500mm | Lenght: | 100-12000mm |

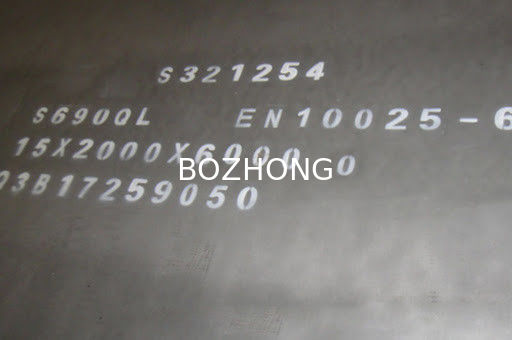

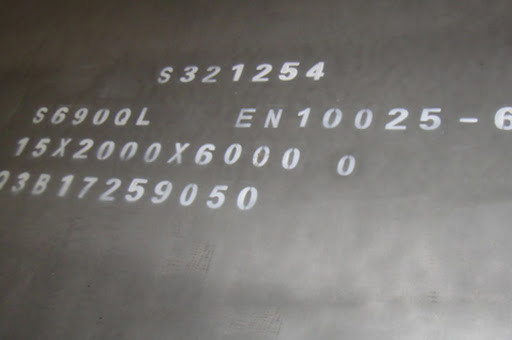

EN 10025-6 Grade S690QL Plates Specification
Thickness: 8-200mm
Width:100-2500mm
Length:100-12000mm
Heat Treatment: Q+T(Quenched and Tempered)
Grade: S690QL EN10137-2 EN10025-6:2004, A709-100,DILLIMAX690,NAXTRA70,WELDOX700,E690,S690 QL1,S690 Q
| C | Si | Мn | P | S | N | B | Сr | Сu | Мо | Nb | Ni | V |
| 0.20 max.(%) | 0.80 max.(%) | 1.70 max.(%) | 0.020-0.025 | 0.010-0.015 | 0.015 max.(%) | 0.005 max.(%) | 1.50 max.(%) | 0.50 max.(%) | 0.70 max.(%) | 0.06 max.(%) | 2.00 max.(%) | 0.12 max.(%) |
| Steel Grade | Thickness, mm | Yield strength, min MPa | Tensile strength, MPa | Elongation, min % |
| S690QL | ≥8 t ≤50 | 690 | 770-940 | 14 |
