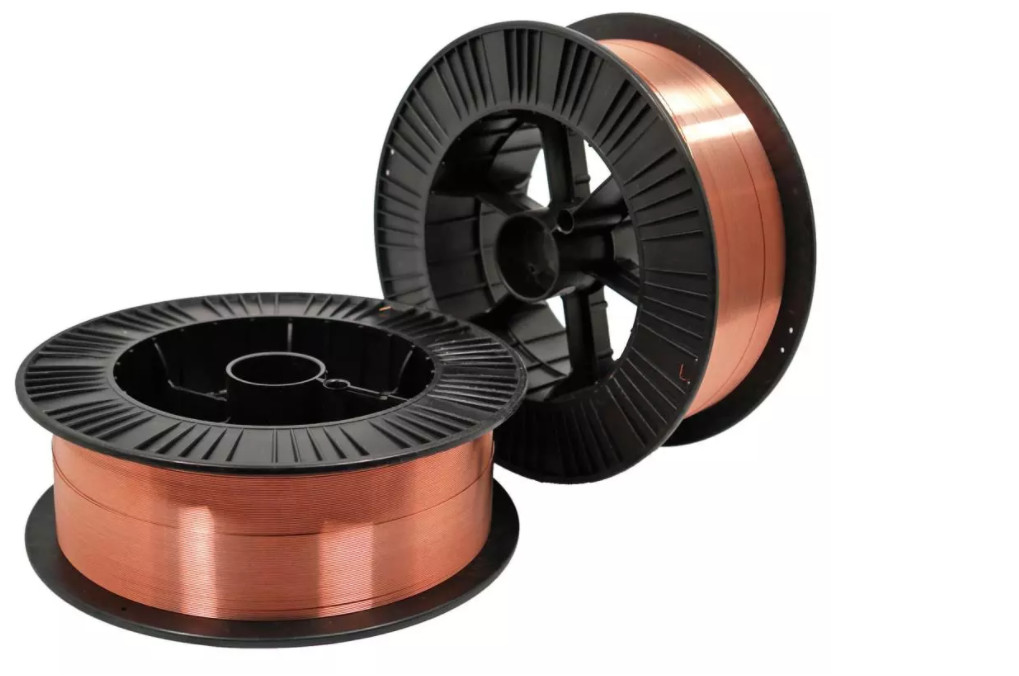

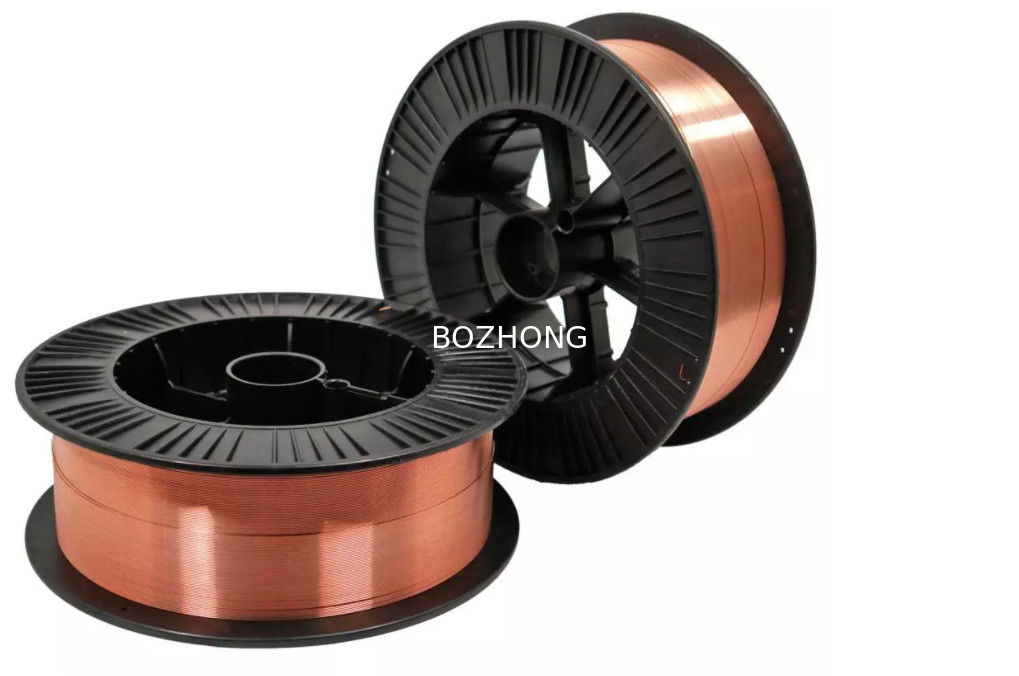

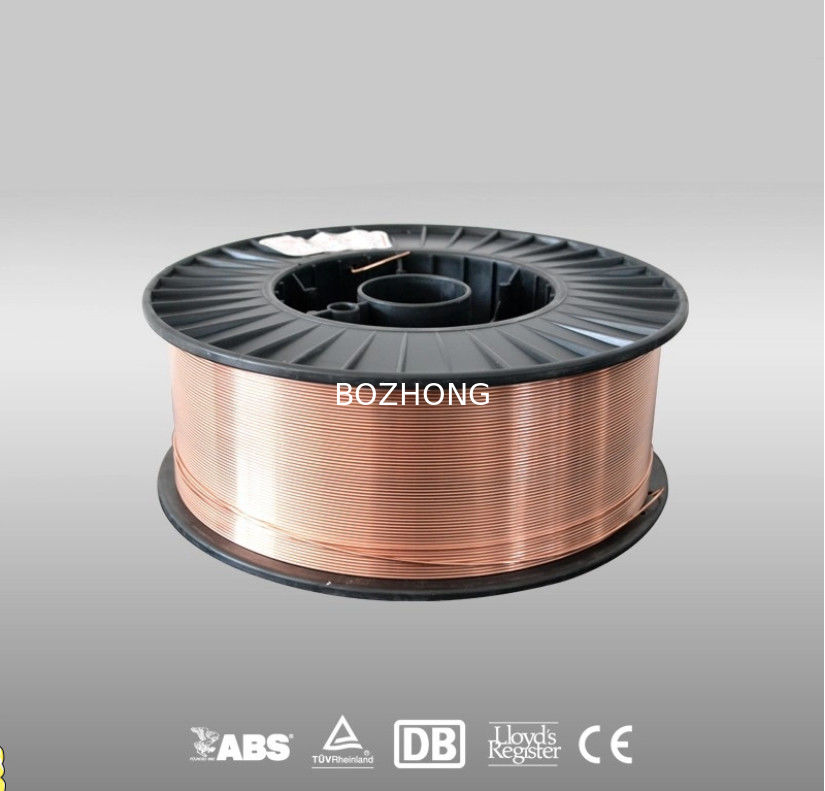

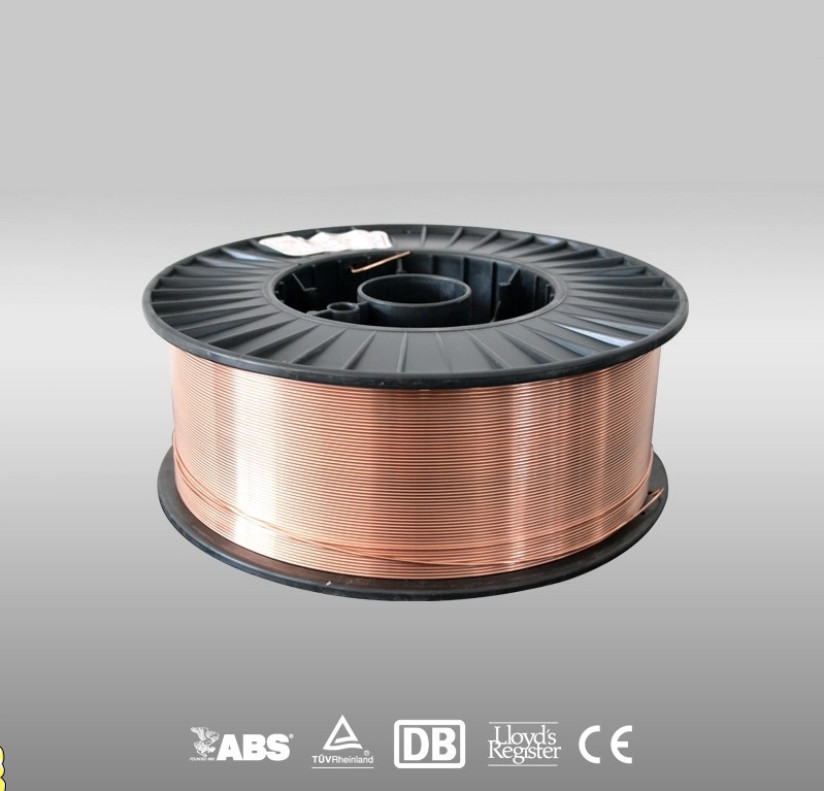

Copper Coated 1.2mm Thickness Co2 Mig Welding Wire

Basic Information

Place of Origin:	China
Brand Name:	BOZHONG
Certification:	IOS,SGS
Model Number:	ER70S6

Minimum Order Quantity:	500KG
Packaging Details:	Standard Seaworthy Package
Delivery Time:	7-25DAYS ACCORDING TO YOUR ORDER QUANTITY
Payment Terms:	L/C, T/T
Supply Ability:	100TONS PER MONTH

Get Best Price Contact Now

Detail Information

High Light:

Co2 Mig Welding Wire

1.2mm Mig Welding Wire

SGS Copper Coated Welding Wire

Product Description

We offering qualitative CO2 MIG Welding Wire at very reasonable price. Application:Widely used for the transmission of high currents from the electric welding machine to the welding tool.

Features:

ER70S-6 is a kind of mild steel copper coated welding wire, suitable for 100% CO2 and Argon& CO2 mixed gas protective welding with stable feasibility, good welding seams, less spatters and excellent welding process properties.

Products	Type	Diameter	Standard
Welding wire	AWS:A5.18 ER70S-6	0.8mm—1.6mm	GB/T8110 ER50-6

Chemical Composition(%)
Elements	Requirement	Actual Result

C	0.06-0.15	0.09

Mn	1.40-1.85	1.48

Si	0.80-1.15	0.9

P	≦0.025	0.013
S	≦0.015	0.012
Cu	≦0.50	0.12
Ni	≦0.15	0.02
Cr	≦0.15	0.023

Mechanical Properties Of Deposited Metal
Item	Requirement	Actual Result

Tensile Strength (Mpa)	≧500	560

Yield Point (Mpa)	≧420	450

Elongation (%)	≧22	28

Impact Tem(℃)	-30	-30
Impact Value(J)	≧47	88
X-ray	I	I
Surface Quality	OK

Welding reference current : (DC +)
Welding wire diameter(mm)	0.8	0.9	1	1.2	1.6
Welding current(A)	50-180	50-185	70-230	80-350	120-500
