| Place of Origin: | CHINA |
|---|---|
| Brand Name: | BOZHONG |
| Certification: | ISO/TUV/DNV |
| Model Number: | 2205/S32205 |
| Minimum Order Quantity: | negotiable |
| Price: | negotiable |
| Packaging Details: | seaworthy packing |
| Delivery Time: | 3--10days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000TON/MONTH |
| GRADE: | S32205 | SURFACE: | BLACK/BRIGHT |
|---|---|---|---|
| LENGTH: | 6000/5000--7000mm | SHAPE: | Round/squre/hexagon/bar/rod |
| Description: | Stainless Steel Bar | Material: | Duplex Stainless Steel |
| High Light: | S32205 Stainless Steel Bar,7000mm Stainless Steel Bar,UNS S32205 Hexagon stainless steel square bar |
||

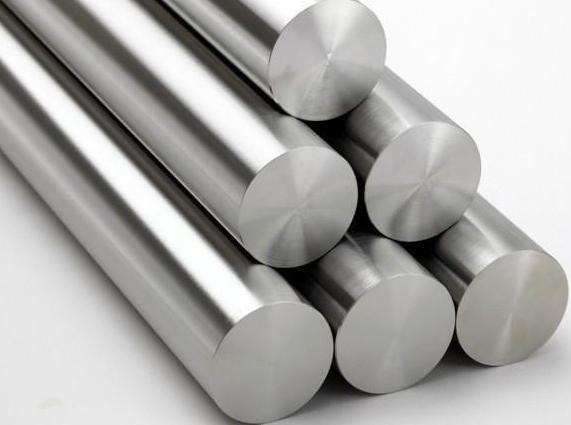

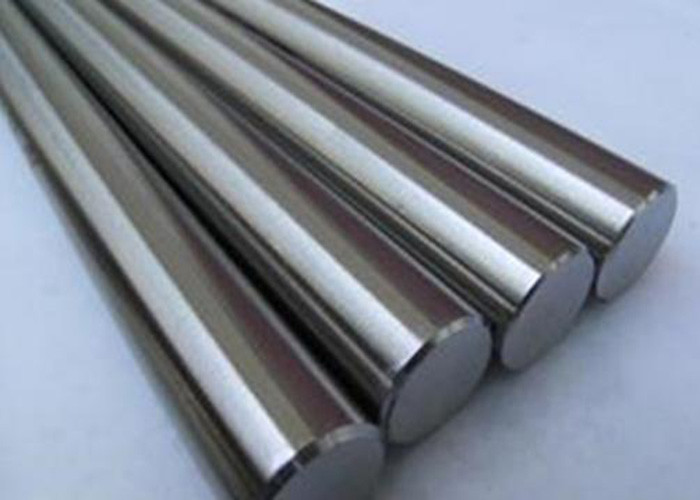

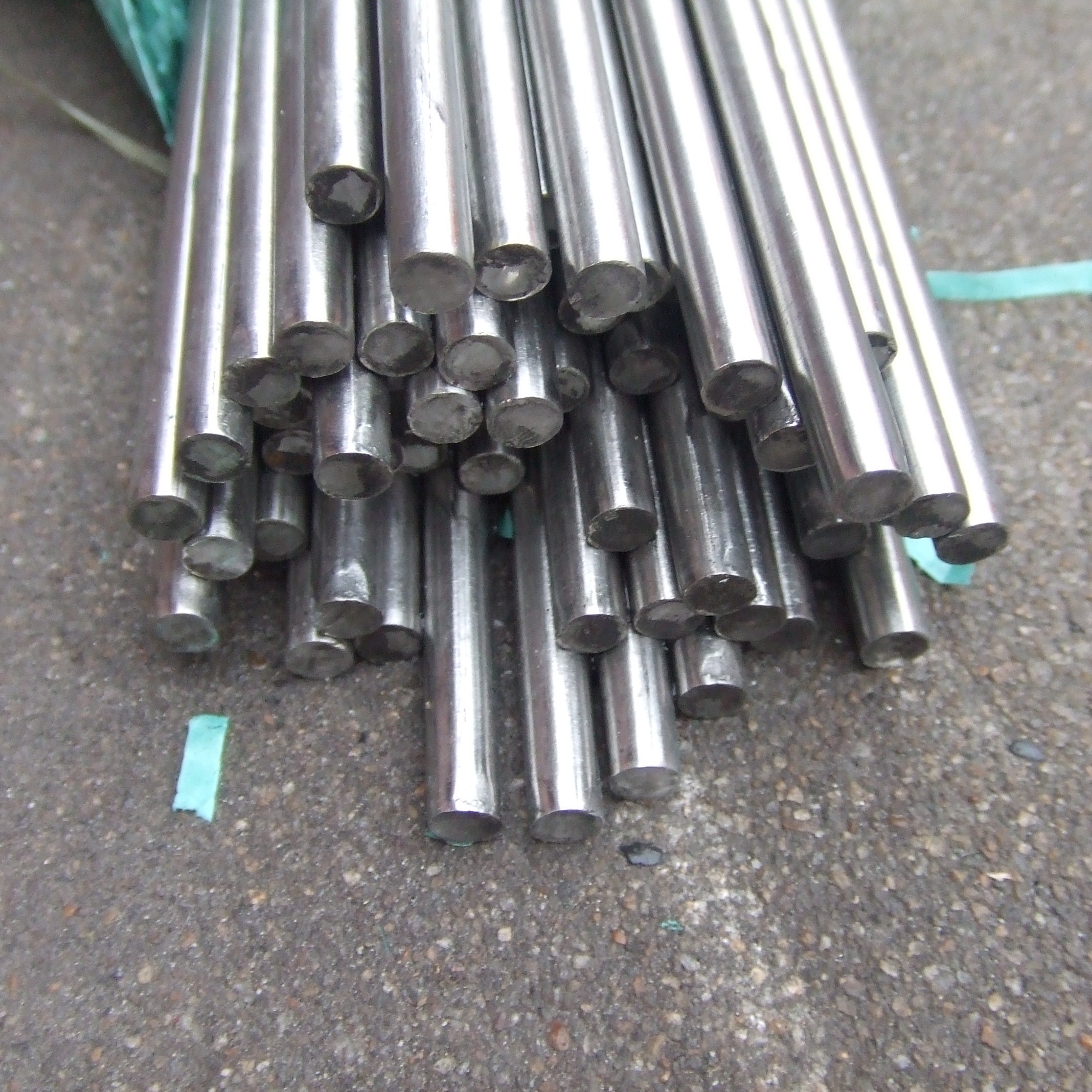

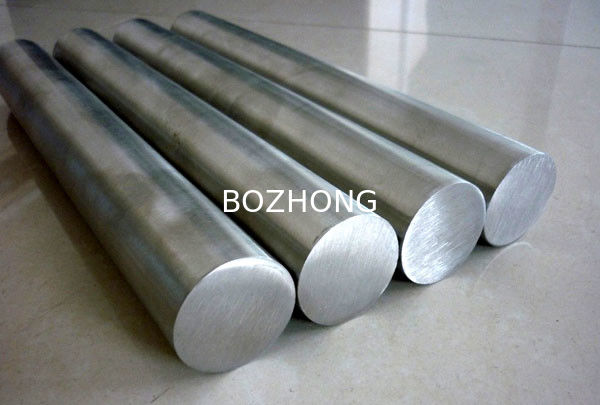

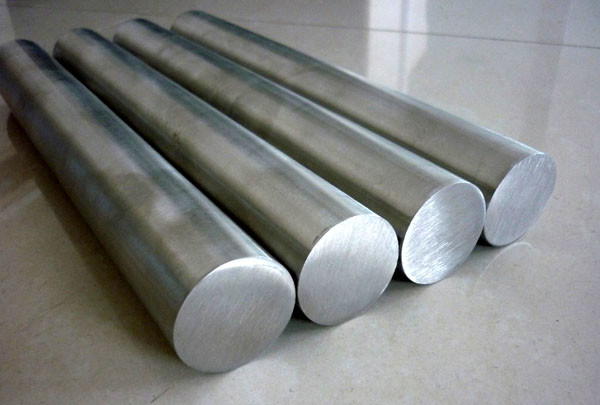

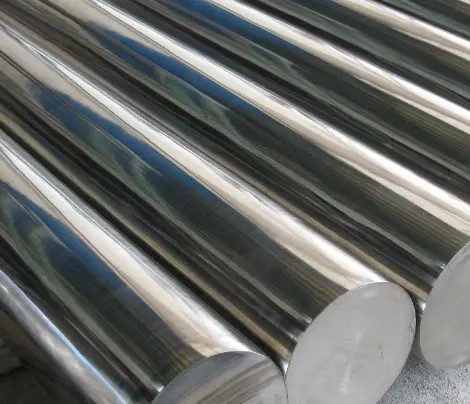

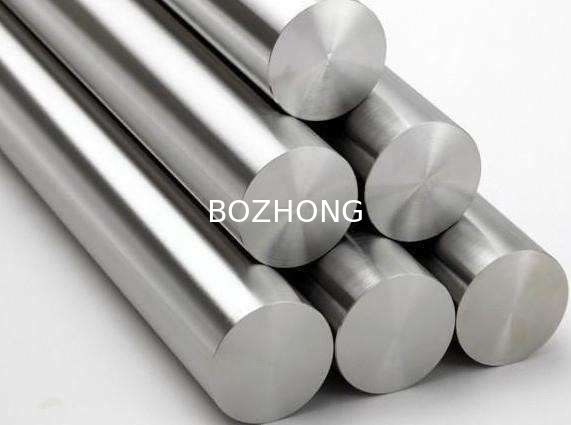

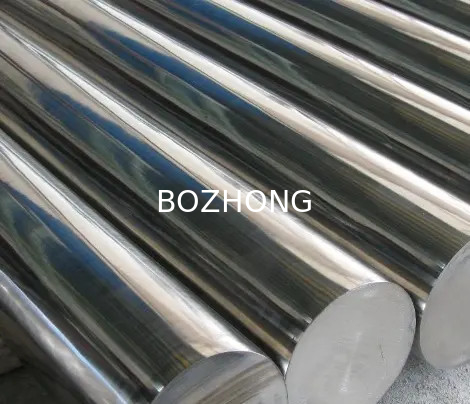

2205 S32205 Stainless Steel Bar Round / Square / Hexagon Shape Stress Corrosion Resistant
Features:
2205 is a duplex stainless steel with nearly equal proportions of austenite and ferrite when properly heat treated. This microstructure makes it much more resistant to stress corrosion cracking than stainless steel 304 and 316L. 2205’s higher chromium, molybdenum and nitrogen contents give it significantly improved pitting and crevice corrosion resistance in the presence of chlorides. Its yield strength is about twice that of austenitic stainless steels. It is highly suitable for Applications in environments containing chlorides and hydrogen sulfide such as marine applications and oil and gas production.
Applications:
Oil and gas industry piping, tubing and heat exchangers; pulp and paper industry bleaching equipment, liquor tanks and digesters; cargo tanks for ships and trucks; chemical processing industry pressure vessels, tanks, piping and heat exchangers; and food processing equipment.
Equivalent designations
UNS S32205
DIN W. Nr. 1.4462
| Form | ASTM | |||||||||
| Rod, bar and shape | A 276, A 484 | |||||||||
| Plate, sheet and strip | A 240, A 480 | |||||||||
| Seamless and welded pipe | A 790, A 999 | |||||||||
| Seamless and welded tubing | A 789, A 1016 | |||||||||
| Fitting | A 815, A 960 | |||||||||
| Forged or rolled pipe flange and forged fitting | A 182, A 961 | |||||||||
| Billet and bar for forging | A 314, A 484 | |||||||||
| Chemical composition | ||||||||||
| % | Fe | Cr | Ni | Mo | C | Mn | Si | P | S | N |
| min | balance | 22 | 4.5 | 3 | 0.14 | |||||
| max | 23 | 6.5 | 3.5 | 0.03 | 2 | 1 | 0.03 | 0.02 | 0.2 | |
| Physical properties | ||||||||||
| Density | 7.69 g/cm3 | |||||||||
| Melting range | 1385-1443℃ | |||||||||
