| Place of Origin: | China |
|---|---|
| Brand Name: | Bozhong |
| Certification: | IOS |
| Model Number: | 1.1191, DIN Ck45, AISI 1045 |
| Minimum Order Quantity: | 1Ton |
| Packaging Details: | Ordinary export standard packing |
| Delivery Time: | 15-45days after receive deposit |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 5000tons/Month |
| Application: | Container Plate,construction,Flange Plate,Ship Plate,Boiler Plate | Technique: | Hot Rolled,Cold Rolled,hardfacing/Surface Welding/cladding |
|---|---|---|---|
| Surface Treatment: | Coated,Galvanized,Other,Coated.Galvanized,Black | Standard: | ASTM,GB,AISI,JIS,DIN |
| Length: | 1000-12000mm,as Per Requested | Name: | Alloy Steel Bar |
| High Light: | round bar rod,alloy steel rod |
||

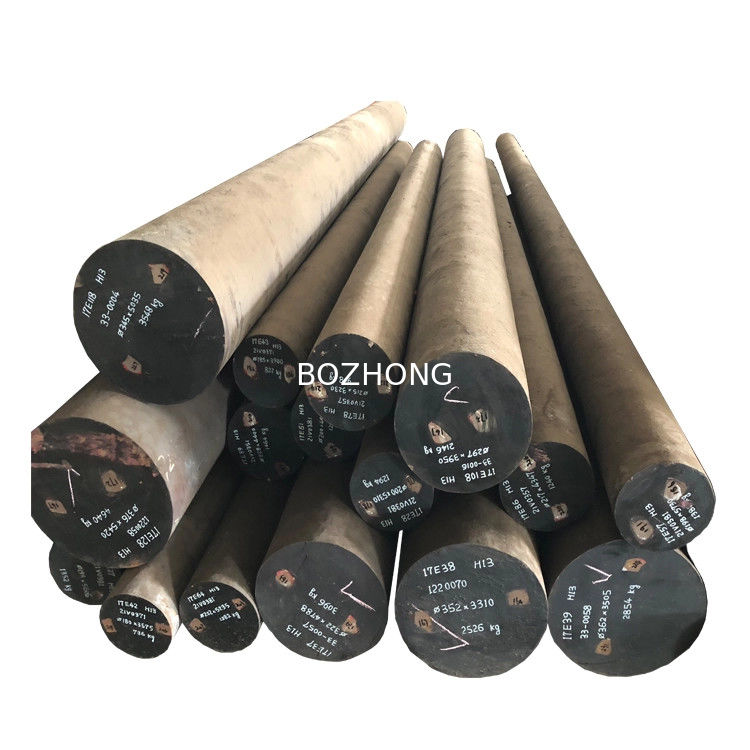

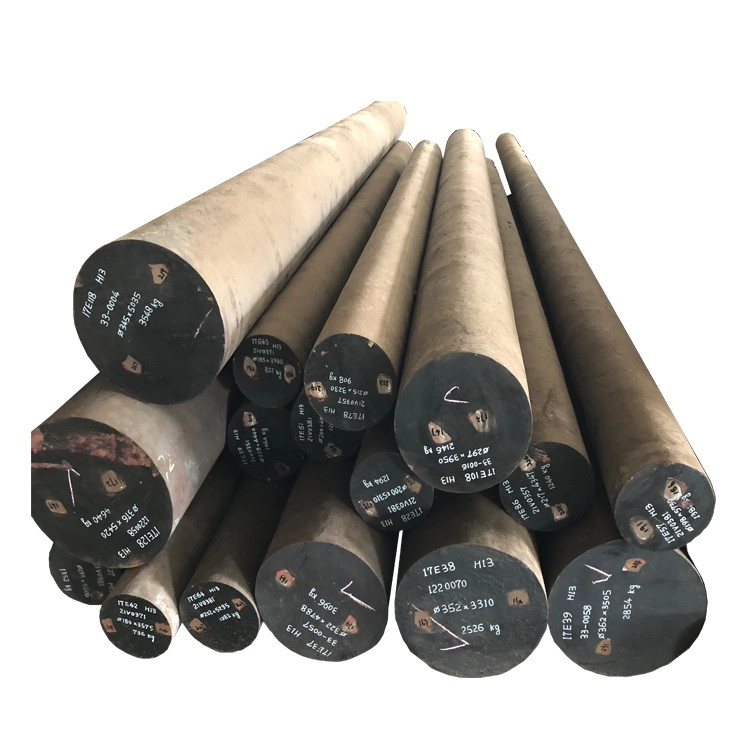

High Hardness Alloy Steel Bar 1.2738 1.2311 1.0503 1.0540 Steel Rods Hot Work Tool
Designation by Standards
Mat. No. DIN EN AISI 1.0540 C50 - 1050 Chemical Composition (in weight %)
C Si Mn Cr Mo Ni V W Others 0.51 0.20 0.75 0.20 0.05 0.20 - - - Description C50 is a medium carbon steel is used when greater strength and hardness is desired than in the “as rolled” condition. Applications Quenched and subsequently tempered steel for screws, forgings, wheel tyres, shafts, sickles, axes, knives, wood working drills, hammers, etc. Physical properties (avarage values) at ambient temperature Modulus of elasticity [103 x N/mm2]: 205 Density [g/cm3]: 7.85 Specific heat capacity[J/g.K]: 0.48 Coefficient of Linear Thermal Expansion 10-6 oC-1
20-100oC 20-250oC 20-500oC 11.5 13.0 14.0 Soft Annealing Heat to 680-710oC, cool slowly in furnace. Normalizing Normalizing temperature: 840-880oC/air. Hardening Harden from a temperature of 820-860oC followed by water or oil quenching. Tempering Tempering temperature: 550-660oC/air. Forging Hot forming temperature: 1050-850oC. Machinability No data. Disclaimer The information and data presented herein are typical or average values and are not a guarantee of maximum or minimum values. Applications specifically suggested for material described herein are made solely for the purpose of illustration to enable the reader to make his own evaluation and are not intended as warranties, either express or implied, of fitness for these or other puposes. There is no representation that the recipient of this literature will receive updated editions as the become available.
Product Description
1. By steel strips in bundles
2. By woven cloth with 7 slats
3. By wooden pallet
4. According to the requirements of customersDelivery Details : By sea
1. In bulk ( based on 200 tons)
2. 20 ft container: 25 tons (Length limited 5.8 m MAX)
3. 40 ft container:(Length limited 11.8 m MAX)
