| Place of Origin: | China |
|---|---|
| Brand Name: | BOZHONG |
| Certification: | IOS,SGS |
| Model Number: | CCA Busbar |
| Minimum Order Quantity: | 500KG |
| Packaging Details: | Standard Seaworthy Package |
| Delivery Time: | 3--25days |
| Payment Terms: | T/T |
| Supply Ability: | 1000TONS PER MONTH |
| Product Name: | Copper Busbar | Grade: | C1100 / C1020 / C1220 |
|---|---|---|---|
| HS Code: | 8537109090 | Transport Package: | Carton Box |
| Shape: | Busbar/plate | Width: | 10-240mm |
| Thickness: | 2-24mm | Standards: | BS EN 13601:2013 |
| High Light: | C1020 Pure Copper Busbar,24mm Pure Copper Busbar,Switchgear Copper Bus Bar |
||

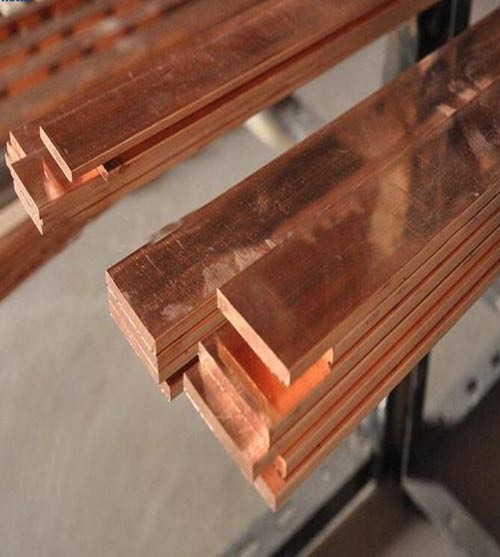

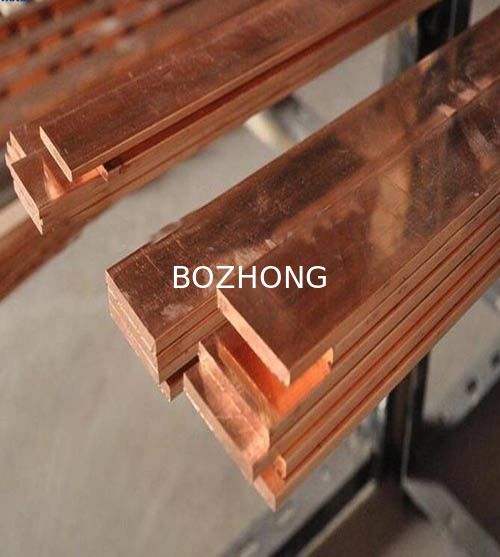

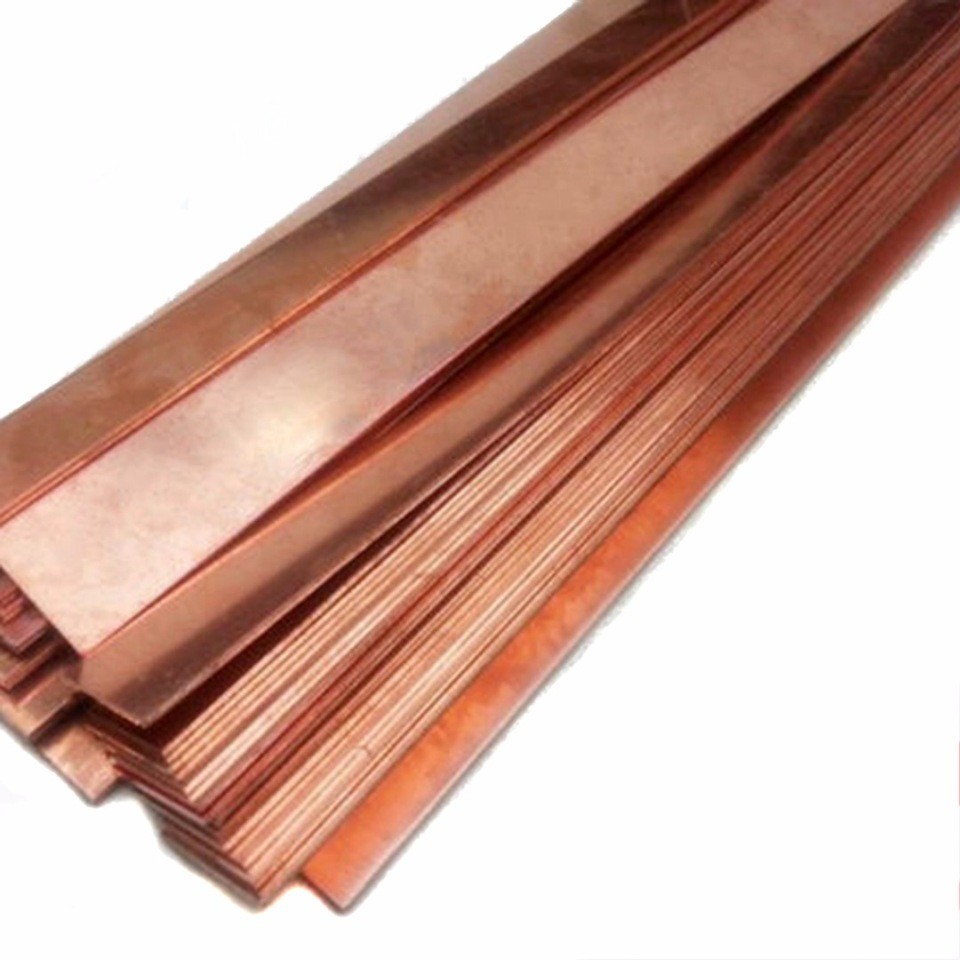

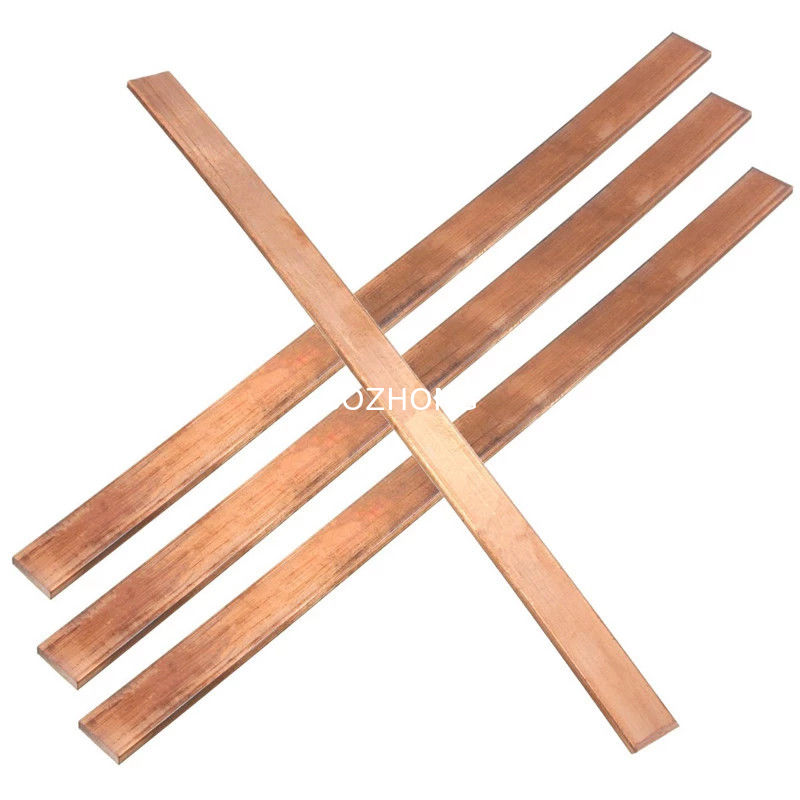

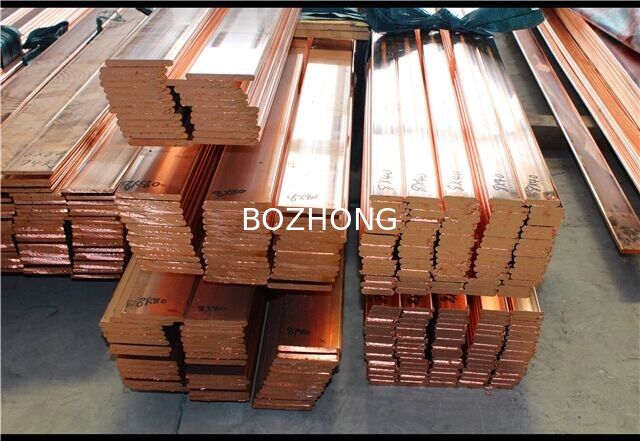

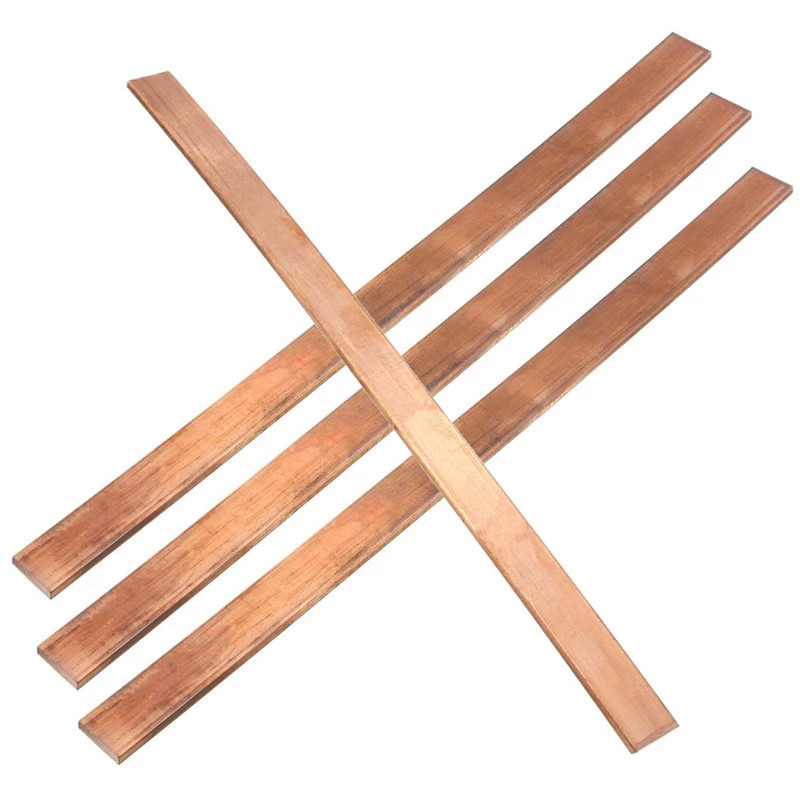

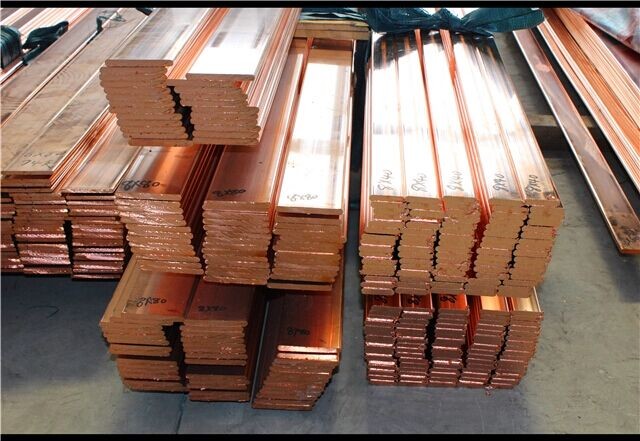

Hot Sale 99.99% Pure Copper Busbar/CCA Bus Bar Customized Using for Electrical Equipment
Busbar Edge Shapes:
Sharp Corners
Rounded Corners
Semi-Circular Edges
Range of Sizes:
Width: From 10mm up to 240mm
Thickness: From 2mm up to 24mm
Cross-Section Area: From 30 mm2 up to 3800mm2
Busbar Applications:
Switchgear
Panel Boards
Busway and Busduct Enclosures
Earthing (safety grounding)
Standards:
JIS H-3140:2012
BS EN 13601:2013
| Chemical Composition | C1100: Cu >99.90% C1020: Cu >99.96% C1220: Cu >99.97%; P 0.015-0.04% |
| Oxygen content | C1100: O < 500PPM C1020: O < 50PPM |
| Electric 20°CConductivity | C1100/C1020 >97% ;C1220 >80% |
| Size | custom made |
| Grade | C1100 / C1020 / C1220 |
