| Brand Name: | BOZHONG |
|---|---|
| Certification: | ISO / TUV / DNV |
| Model Number: | Incoloy 330 |
| Minimum Order Quantity: | negotiable |
| Price: | negotiable |
| Packaging Details: | seaworthy packing or as required |
| Delivery Time: | 3--10days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000TON/MONTH |

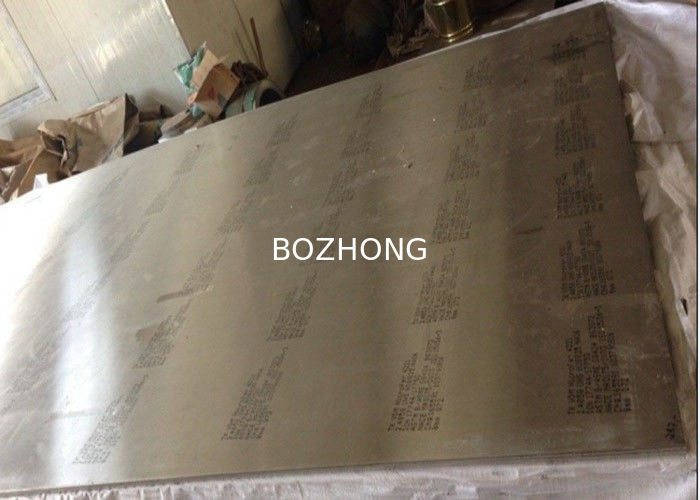

| Description: | Incoloy 330 Nickel Alloy Plate | Grade: | Incoloy 330 |
|---|---|---|---|
| Density: | 8.08 Gm/cm3 | Tensile Strength(annealed): | 600 MPa |
| Standard: | ASTM B 536, ASME SB 536, SAE AMS 5592 | Surface: | BA,2B,NO.1,NO.4,4K,HL |
| High Light: | thin alloy sheet,metal alloy plate |
||
incoloy® alloy 330 is designated as UNS N08330 and W. Nr. 1.4886.
Bars and Shapes: ASTM B 511, ASME SB 511
Billets and Bars: ASTM B 512, ASME SB 512
Pipe and tube: ASTM B 535; ASME SB 535, ASTM B 546; ASME SB 546, ASTM B 710; ASME SB 710, ASTM B739; ASME SB 739, ASTM B 829/ASME SB 829.
Plate. Sheet and Strip: ASTM B 536, ASME SB 536, SAE AMS 5592
Bars, Wire, Forgings and Rings: SAE AMS 5716
Other: ASTM B 366/ASME SB 366
The chemical composition of INCOLOY alloy 330 is given in the following table.
| Element | Content (%) |
|---|---|
| Iron, Fe | 43 |
| Nickel, Ni | 34-37 |
| Chromium, Cr | 17-20 |
| Manganese, Mn | ≤2 |
| Others | Remainder |
The following table discusses the physical properties of INCOLOY alloy 330.
| Properties | Metric | Imperial |
|---|---|---|
| Density | 8.08 gm/cm3 | 0.292 lb/in3 |
The mechanical properties of INCOLOY alloy 330 are tabulated below.
| Properties | Metric | Imperial |
|---|---|---|
| Tensile strength(annealed) | 600 MPa | 87 ksi |
| Yield strength(annealed) | 280 MPa | 40.6 ksi |
| Elongation at Break | 45% | 45% |
INCOLOY alloy 330 is used in the following applications:-
