Alloy C276 Equivalents: UNS N10276/ Hastelloy C-276/ Werkstoff 2.4819
Pipe (seamless and welded in random lengths and cut to size)
Fittings (BW and forged fittings)
Flanges (ANSI, DIN, EN, JIS)
Bar (round, square and hexagonal in random lengths and cut to size)
Forgings (Discs, Rings and forgings according to drawing)

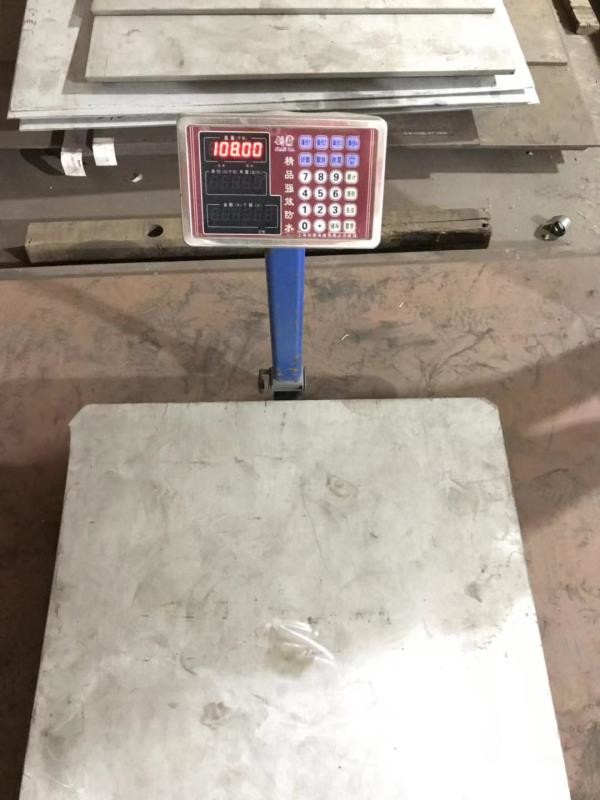

Plate and sheet (Full plates and cut to size)
Applications Alloy C276:
Alloy C276 has a very good resistance to a variety of chemical process environments such as hot contaminated organic and inorganic media, chlorine, formic and acetic acids, acetic anhydride, seawater and brine solutions and strong oxidizers such as ferric and cupric chlorides. Alloy C276 has excellent resistance to pitting and to stress-corrosion cracking but it is also used in flue gas desulfurization systems for sulfur compounds and chloride ions encounted in most scrubbers. It is also one of the few materials that withstands the corrosive effects of wet chlorine gas, hypochlorite, and chlorine dioxide.
Chemical analysis Alloy C276:Nickel - balance
Chromium - 14,5-16,5%
Iron - 4,0-7,0%
Molybdenum - 15,0-17,0%
Tungsten - 3,0-4,5%
Cobalt - 2,5% max.
Manganese - 1,0% max.
Carbon - 0,01% max.
Silicon - 0,08% max.
Sulfur - 0,03% max.
Vanadium - 0,35% max.
Phosphorus - 0,04% max Alloy C276 ASTM standards:
Bar/Billet - B574
Forgings/Flanges - B564
Seamless Tubing - B622
Welded Tubing - B626
Seamless Pipe - B622
Welded Pipe - B619
Plate - B575
Buttweld Fittings - B366
Density Alloy 825: 8,87
