| Brand Name: | BOZHONG |
|---|---|
| Certification: | ISO / TUV / DNV |
| Model Number: | Inconel 713C |
| Minimum Order Quantity: | negotiable |
| Price: | negotiable |
| Packaging Details: | seaworthy packing or as required |
| Delivery Time: | 3--10days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000TON/MONTH |

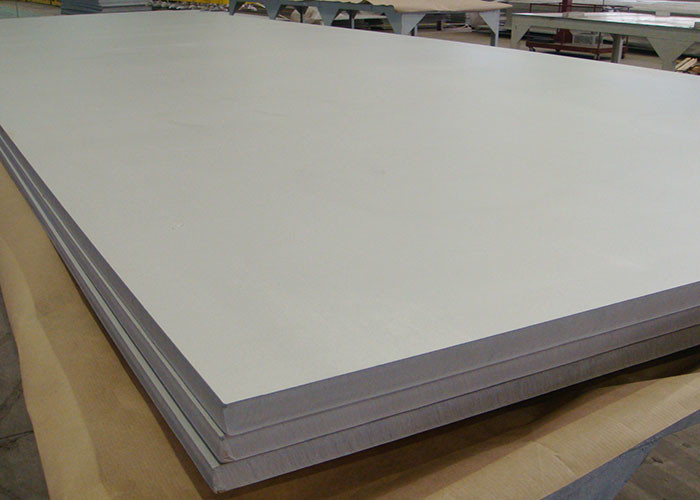

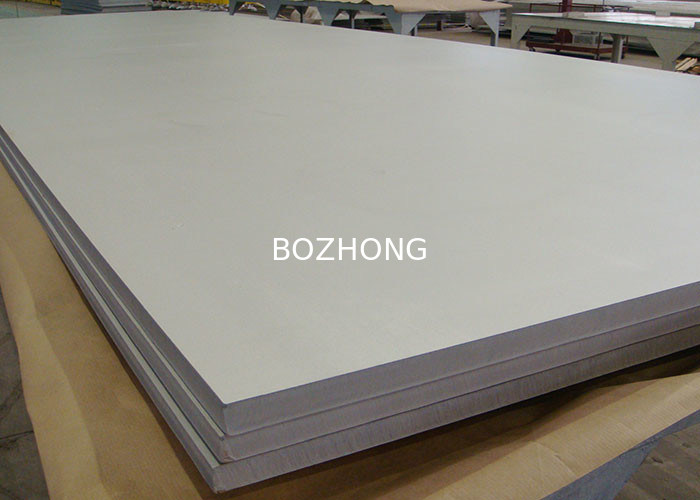

| Description: | Inconel 713C Nickel Alloy Plate | Grade: | Inconel 713C |
|---|---|---|---|
| Width: | 1000-2000mm | Length: | 2000-12000mm |
| Density: | 7.913 G/cm³ | Surface: | 2b Ba |
| High Light: | nickel alloy sheet,thin alloy sheet |
||
Inconel 713C is a nickel-chromium alloy that is ideally suited for jet engine gas turbine blades.Inconel 713C offers outstanding resistance to thermal fatigue and good castability while offering exceptional rupture strength at 1700°F (927°C).
| Alloy | % | Ni | Cr | Fe | Mn | Si | Mo | Zr | Ti | Cu | Co | Al | C | S |
| 713C | Min. | Bal | 12.0 | - | - | - | 3.8 | 0.05 | 0.5 | - | 1.8 | 5.5 | - | - |
| Max. | 14.0 | 2.5 | 0.25 | 0.5 | 5.2 | 0.15 | 1.0 | 0.5 | 2.8 | 6.5 | 0.20 | 0.015 |
| Density | 7.913 g/cm³ |
| Melting point | 1260℃-1288℃ |
● High-speed tungsten-cobalt or molybdenum-tungsten-vanadium toolsCutting lubricants:
Chlorinated, sulfurized fatty mineral oil
Rich emulsion of 10 parts water and 1 part soluble oil
Aluminum oxide
Vitrified bond of medium or soft hardness and medium open structure
Use 1 pound of sal soda with 25 gallons of water, or chemically active grinding coolant
Inconel 713C is most commonly used for jet engine gas turbine blades.
